Product Overview: Texas Instruments CD4027BPWR

The Texas Instruments CD4027BPWR is a versatile CMOS Dual J-K Master-Slave Flip-Flop integrated circuit, designed to provide reliable bistable state storage capabilities. This IC is particularly well-suited for a wide range of applications including control systems, data storage, and toggle functions. It is a member of the 4000 series digital logic family, renowned for its ease of use and robust performance.

This flip-flop IC features two identical, independent J-K flip-flops with individual J, K, clock (CLK), and reset (RST) inputs, and complementary outputs (Q and Q-bar). The dual flip-flop design allows for the implementation of sequential logic circuits and various binary counting configurations. The J and K inputs control the state changes of the flip-flops as per the logic level at the clock input.

The CD4027BPWR operates over a wide voltage range from 3V to 18V, which makes it compatible with both TTL (Transistor-Transistor Logic) and CMOS (Complementary Metal-Oxide-Semiconductor) logic levels. This flexibility in operating voltage ensures that the device can be used in a variety of power environments, from battery-powered portable devices to industrial control systems.

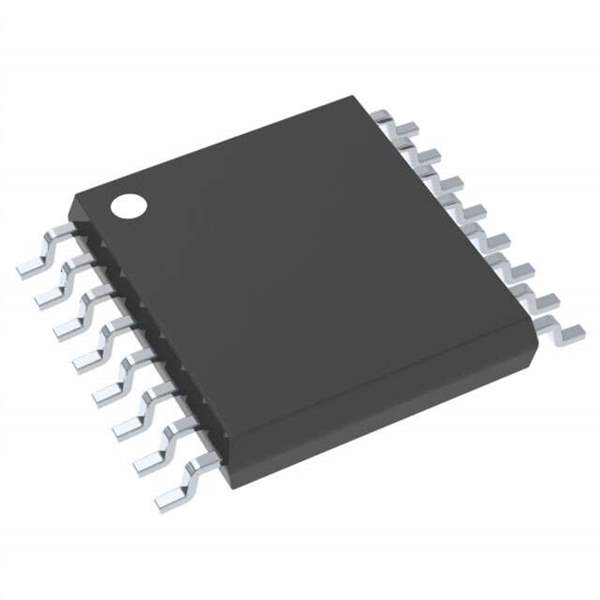

Manufactured in a TSSOP (Thin Shrink Small Outline Package) form factor, the CD4027BPWR is designed for surface mount technology (SMT), offering a compact footprint and reduced space requirements on a printed circuit board (PCB). This package type is ideal for modern electronic applications where space is at a premium.

The CD4027BPWR also features a high noise immunity characteristic of CMOS devices, ensuring stable operation even in electrically noisy environments. Additionally, the low power consumption of the IC makes it an excellent choice for energy-sensitive applications.

With its robust design, wide operating voltage range, and compact packaging, the Texas Instruments CD4027BPWR is a reliable and efficient solution for designers looking to implement J-K flip-flop functionality in their digital logic systems.
