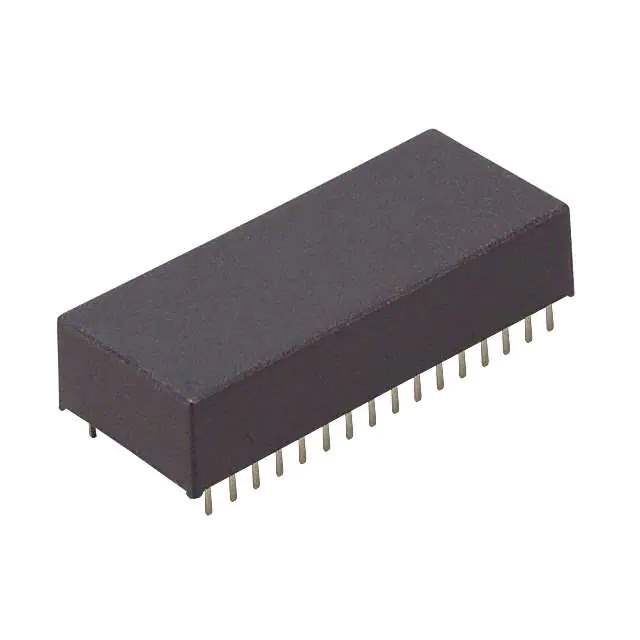

BQ4013YMA-70

Part No BQ4013YMA-70
Manufacturer Texas Instruments
Catalog Memory
Description IC NVSRAM 1MBIT PAR 32DIP MODULE
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Texas Instruments
Package Tube
Product Status Obsolete
Programmable Not Verified
Memory Type Non-Volatile
Memory Format NVSRAM
Technology NVSRAM (Non-Volatile SRAM)
Memory Size 1Mbit
Memory Organization 128K x 8
Memory Interface Parallel
Write Cycle Time - Word, Page 70ns
Access Time 70 ns
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Through Hole
Package / Case 32-DIP Module (0.610", 15.49mm)
Supplier Device Package 32-DIP Module (18.42x42.8)
Base Product Number BQ4013
Standard Package 12 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0041
Win Source Part Number 571640-BQ4013YMA-70
Ultra Librarian 3D Model Ultra Librarian BQ4013YMA-70 CAD Model

Description

BQ4013YMA-70 from Texas Instruments is a memory-category component commonly evaluated for use in embedded electronics, legacy system maintenance, and designs that require dependable data retention behavior within established architectures. For engineers and procurement teams, this part is most relevant when supporting installed equipment, repairing older boards, or assessing compatibility in long-life industrial and control applications. Its value is often tied to Texas Instruments brand familiarity, ecosystem support, and the need to match an existing bill of materials rather than redesign around a new device. The current lifecycle status is unknown based on the information provided, so design teams should treat sourcing and long-term availability with caution until confirmed through official manufacturer channels. RoHS compliance information is also not available here. Before release to production, engineers should verify the latest datasheet, material declarations, and manufacturer notices to confirm environmental compliance, lifecycle standing, and fit for new or sustaining designs.
