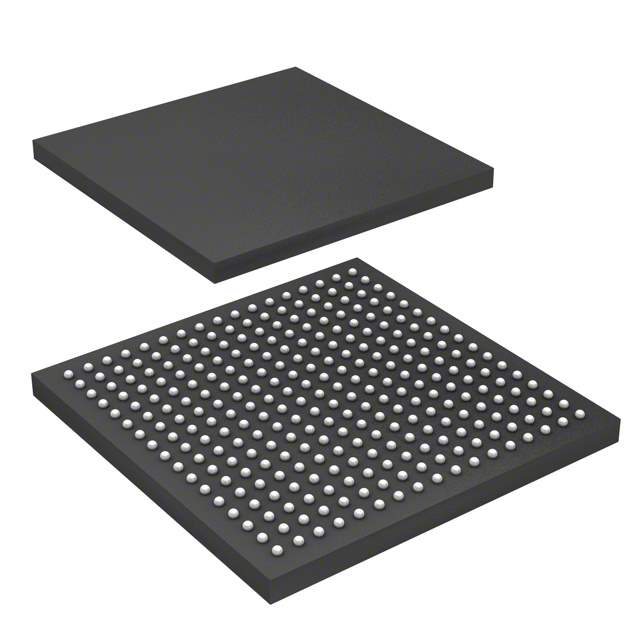

The AFE5832ZBV is a highly integrated, multi-channel Analog Front End (AFE) solution designed by Texas Instruments to cater to the demanding needs of ultrasound imaging systems. This advanced AFE combines a low-noise amplifier, a variable gain amplifier, an anti-aliasing filter, and a high-performance analog-to-digital converter (ADC) in a single package, streamlining the design process for medical imaging developers.

Key Features

• Channel Count: The AFE5832ZBV boasts 32 channels, providing a high level of integration that allows for compact and efficient system designs.
• Performance: Each channel features a low-noise preamplifier (LNA), a variable gain amplifier (VGA), and a 12-bit ADC, ensuring high-quality signal acquisition with excellent dynamic range.
• Programmable Gain: The VGA offers programmable gain settings, enabling precise control over signal amplification to accommodate various imaging scenarios.
• High-Speed Data Interface: With a high-speed LVDS data interface, the AFE5832ZBV ensures rapid data transfer, which is crucial for real-time imaging applications.
• Power Efficiency: Designed with power efficiency in mind, this AFE helps in reducing the overall power consumption of the ultrasound system, leading to more portable and energy-efficient designs.

Applications

The AFE5832ZBV is primarily used in medical ultrasound systems but can also be adapted for other applications that require precise multi-channel data acquisition, such as non-destructive testing and industrial imaging systems.

Technical Specifications

• Supply Voltage: 1.8V Analog, 1.8V Digital
• Input-Referred Noise: 0.75 nV/√Hz at Gain = 21.3 dB
• Total Harmonic Distortion (THD): -75 dB
• Sample Rate: Up to 65 MSPS per channel

In summary, the AFE5832ZBV from Texas Instruments represents a sophisticated blend of performance and integration, making it an ideal choice for developers looking to create state-of-the-art ultrasound imaging systems with a focus on high-resolution imaging and compact design.
