Texas Instruments ADS7864Y/2K Analog-to-Digital Converter

The Texas Instruments ADS7864Y/2K is a high-performance, dual-channel, simultaneous-sampling analog-to-digital converter (ADC) that offers a compelling solution for a wide range of data acquisition applications. This precision ADC is designed to operate with a single 5V power supply, making it suitable for many industrial, medical, and consumer electronics where accurate and reliable signal conversion is essential.

Key Features:

• Resolution: The ADS7864Y/2K features a 12-bit resolution which provides fine granularity in signal conversion, ensuring detailed and accurate digital representation of the analog input signal.
• Sampling Rate: With a high-speed sampling rate of up to 2 MSPS (million samples per second), this ADC is capable of capturing rapid signal changes, making it ideal for high-speed systems.
• Dual Simultaneous Sampling: The dual-channel configuration allows for simultaneous sampling of two analog signals, which is critical for applications requiring synchronized data acquisition from multiple sources.
• Interface: It includes a serial interface compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards, providing flexibility and ease of integration with a variety of microcontrollers and digital systems.
• Low Power Consumption: The device is optimized for low power consumption, which is crucial for battery-powered and energy-efficient applications.
• Input Range: The input range is flexible, accommodating ±10V input signals when operating in bipolar mode, and 0V to 4.096V in unipolar mode.

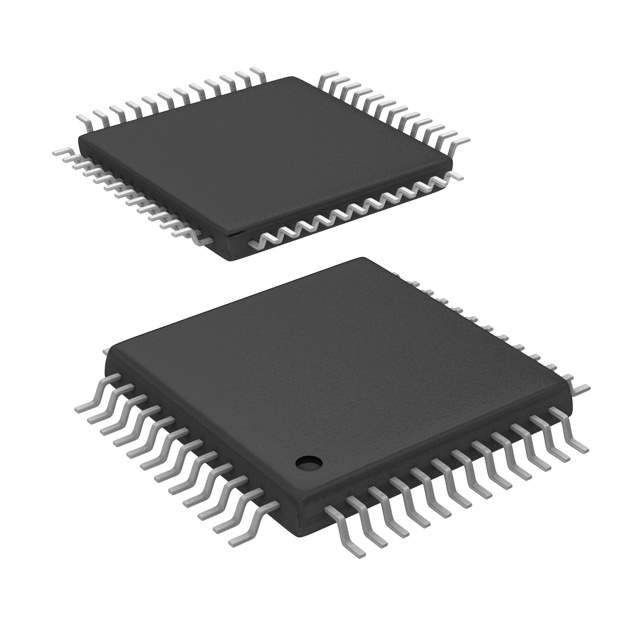

• Package: Available in a compact 48-pin TQFP (Thin Quad Flat Package), the ADS7864Y/2K is designed for space-constrained applications.

Applications:

The ADS7864Y/2K is versatile and can be used in various applications such as:

• Medical Imaging Systems
• Data Acquisition Systems
• Industrial Process Controls
• Motor Control
• Instrumentation
• Portable Instrumentation

With its combination of high-speed, precision, and dual-channel simultaneous sampling, the Texas Instruments ADS7864Y/2K ADC is an excellent choice for designers looking to enhance the performance and efficiency of their data acquisition systems.
