Product Overview: Texas Instruments ADS6445MRGCTEP

The Texas Instruments ADS6445MRGCTEP is a high-performance, quad-channel analog-to-digital converter (ADC) designed for a variety of demanding applications that require high-speed data acquisition and processing. This robust ADC is part of Texas Instruments' Enhanced Product (EP) lineup, which means it is engineered to meet the stringent requirements of aerospace and defense applications, as well as other high-reliability environments.

Key Features

• Precision Conversion: The ADS6445MRGCTEP features a 14-bit resolution, ensuring precise digital representation of the input analog signal.
• High Sampling Rate: With a maximum sampling rate of up to 125 MSPS (Mega Samples Per Second), this ADC is capable of handling high-speed signals without compromising data integrity.
• Quad-Channel Input: The device has four independent ADC channels, which allows for simultaneous sampling of multiple signals, making it ideal for multi-channel applications.
• Low Power Consumption: Despite its high-speed capabilities, the ADS6445MRGCTEP is designed to be power-efficient, which is crucial for applications where power availability is a concern.
• Durable Design: As part of the EP range, this ADC is built to operate reliably over a wide temperature range and withstand harsh environmental conditions.
• Flexible Interface: The product includes a serialized LVDS (Low-Voltage Differential Signaling) output, which reduces the number of interface lines required and minimizes the overall system footprint.

Applications

The ADS6445MRGCTEP is well-suited for a range of critical applications, including:

• Radar and satellite communication systems
• Test and measurement equipment
• Medical imaging devices
• High-reliability data acquisition systems

Package and Quality

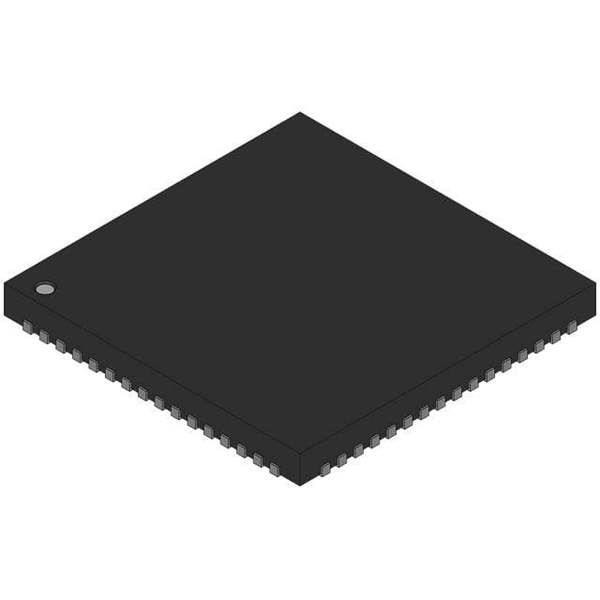

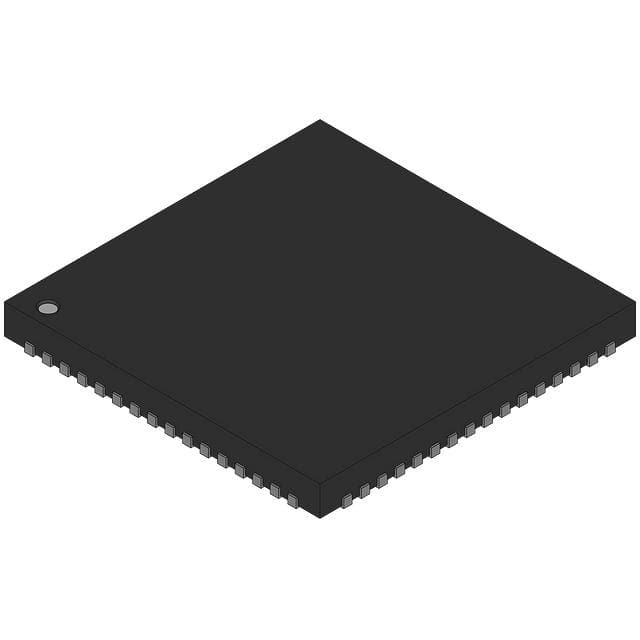

This ADC comes in a robust 64-pin VQFN (Very Thin Quad Flat Non-leaded) package, which is designed for optimal thermal performance and space-saving on printed circuit boards. Furthermore, the ADS6445MRGCTEP meets the quality standards of Texas Instruments' EP classification, ensuring enhanced product change notification, extended temperature performance, and baseline control.

Overall, the ADS6445MRGCTEP from Texas Instruments represents a high-quality, reliable solution for systems that cannot afford to compromise on speed, accuracy, or durability.
