Introducing the ADS62P45IRGCR by Texas Instruments

The ADS62P45IRGCR is a high-performance, dual-channel analog-to-digital converter (ADC) designed by the renowned Texas Instruments. This precision ADC is tailored for applications that demand high-speed data acquisition and processing, such as wireless communications, radar systems, test and measurement equipment, and medical imaging devices. With its advanced features and robust design, the ADS62P45IRGCR ensures reliable and efficient operation in a variety of challenging environments.

Key Features

• High-Speed Performance: The ADS62P45IRGCR boasts an impressive sampling rate of up to 125 MSPS (Mega Samples Per Second), which allows for the accurate capture of high-frequency signals.
• Dual-Channel Operation: This ADC features two independent channels, enabling simultaneous sampling of different signals, which is essential for complex signal processing tasks.
• 14-Bit Resolution: With a 14-bit resolution, the device provides a fine quantization level, ensuring detailed signal representation and high dynamic range.
• Low Power Consumption: Designed with power efficiency in mind, the ADS62P45IRGCR operates with a low power dissipation, making it suitable for power-sensitive applications.
• Flexible Interface: The device includes a DDR LVDS (Double Data Rate Low-Voltage Differential Signaling) output interface, which facilitates high-speed data transfer while minimizing signal noise and electromagnetic interference.
• Integrated Features: It comes with an onboard voltage reference and an analog input buffer, simplifying system design and reducing the need for external components.

Robust Design

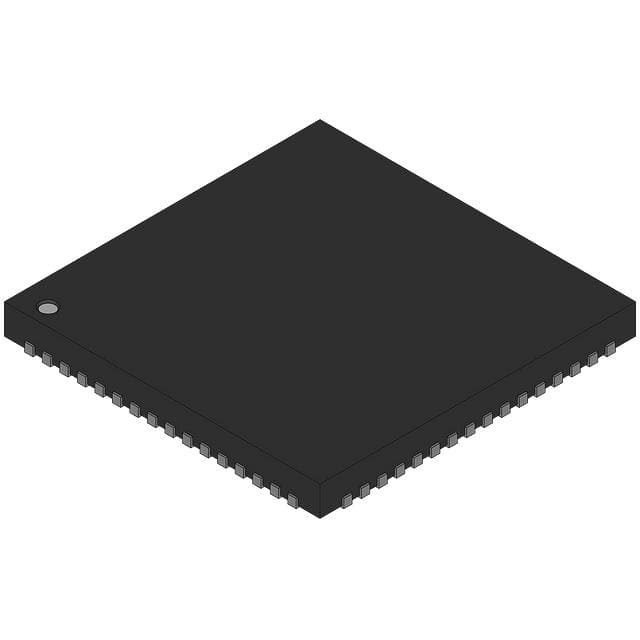

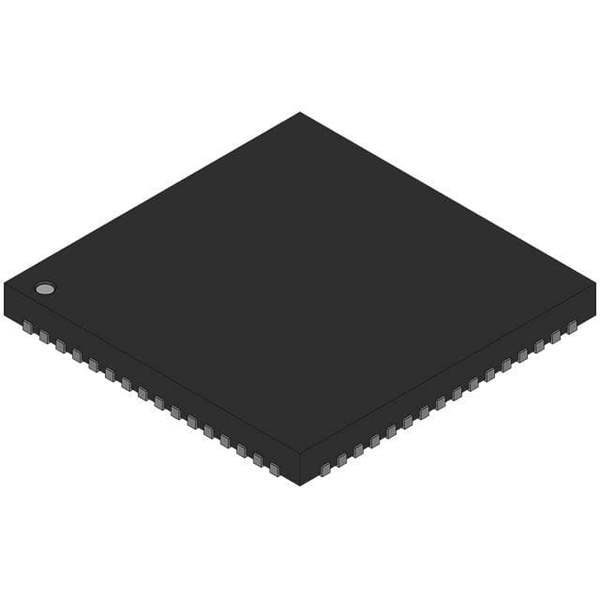

The ADS62P45IRGCR is housed in a compact 64-VQFN (Very Thin Quad Flat Non-leaded) package, which not only saves valuable board space but also offers excellent thermal performance. Its robust design ensures that it can withstand the rigors of industrial-grade applications while maintaining high precision and accuracy.

Applications

This ADC is ideal for use in a wide range of applications, including:

• Wireless communication infrastructure
• Radar and satellite communication systems
• Test and measurement instrumentation
• Medical imaging technologies
• Professional video equipment

With the ADS62P45IRGCR, Texas Instruments continues to demonstrate its commitment to providing cutting-edge technology that meets the stringent requirements of modern electronic systems. Its combination of speed, precision, and reliability makes it a top choice for engineers and designers looking to push the boundaries of digital signal processing.
