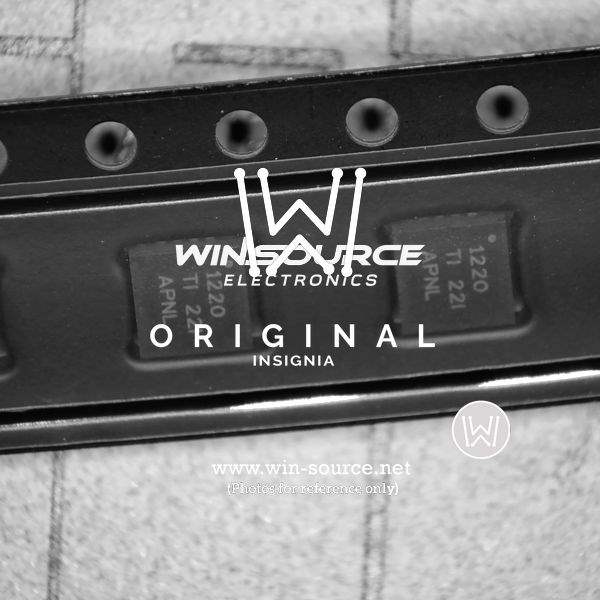

Introducing the ADS1220IRVAT Precision ADC from Texas Instruments

The ADS1220IRVAT is a precision, 24-bit, analog-to-digital converter (ADC) brought to you by Texas Instruments, a leader in semiconductor design and manufacturing. This high-performance ADC offers a unique combination of features that make it ideal for a wide range of applications including industrial process control, sensor transducers, and temperature measurement systems.

At the heart of the ADS1220IRVAT is its exceptional accuracy and low noise performance. It boasts a delta-sigma modulator and features a programmable gain amplifier (PGA), which allows for input ranges from ±256mV to ±6.144V, providing flexibility for various signal amplitudes. The device supports data rates up to 2 kSPS, which is more than sufficient for most precision measurement needs.

One of the standout features of the ADS1220IRVAT is its wide input common-mode range that includes ground, making it suitable for direct connection to shunt resistors or other low-level signal sources. This feature, along with its ability to operate with a single power supply ranging from 2.3V to 5.5V, simplifies the design of isolated power supplies and reduces system complexity and cost.

The ADS1220IRVAT also includes an internal oscillator, eliminating the need for an external clock source, which can be a significant advantage in reducing system design complexity and component count. Furthermore, it has an internal temperature sensor, which can be used to monitor the temperature within the system or compensate for temperature drift in sensor readings.

Communication with microcontrollers is straightforward via the device's SPI-compatible serial interface, which ensures easy integration into your existing digital systems. The compact QFN-16 package of the ADS1220IRVAT makes it a space-saving solution for space-constrained applications.

In summary, the ADS1220IRVAT from Texas Instruments is a versatile, high-precision ADC that offers an excellent balance of performance, flexibility, and ease of use. Whether you're designing for industrial instrumentation, medical equipment, or any other precision measurement application, the ADS1220IRVAT is an excellent choice to meet your ADC requirements.
