Product Overview: ADC12DS080CISQE/NOPB

The ADC12DS080CISQE/NOPB is a high-performance, dual-channel, 12-bit, analog-to-digital converter (ADC) designed by Texas Instruments. This cutting-edge component is tailored for applications requiring high-speed data acquisition, signal processing, and automated test equipment. With its exceptional speed and accuracy, the ADC12DS080CISQE/NOPB is an ideal choice for advanced communication systems, medical imaging, and radar and satellite systems.

Key Features

• Resolution: 12-bit dual-channel ADC, offering precise digital representation of analog signals.
• Sampling Rate: Capable of converting analog inputs to digital outputs at a rate of up to 80 MSPS (Mega Samples Per Second), providing the necessary speed for high-bandwidth signals.
• Input Range: The flexible input range accommodates a variety of signal levels, ensuring compatibility with a range of sensors and input sources.
• Interface: Features a user-friendly parallel LVDS (Low Voltage Differential Signaling) interface, which minimizes digital noise and allows for high-speed data transfer.
• Power Efficiency: Designed with power efficiency in mind, this ADC operates with a low power consumption that is critical for temperature-sensitive applications.

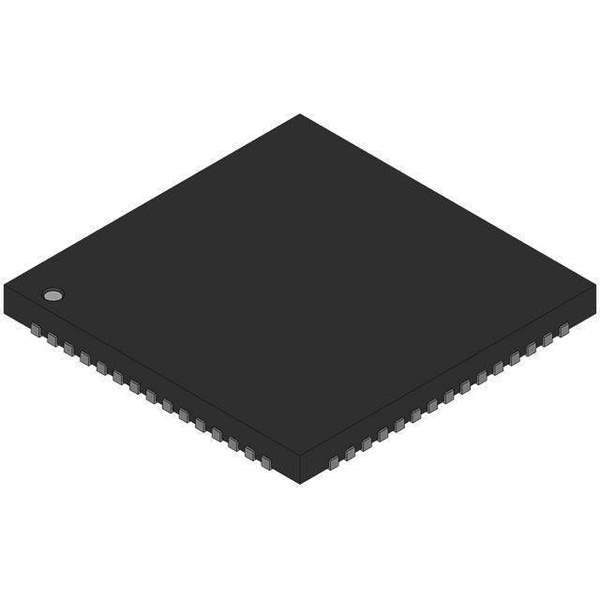

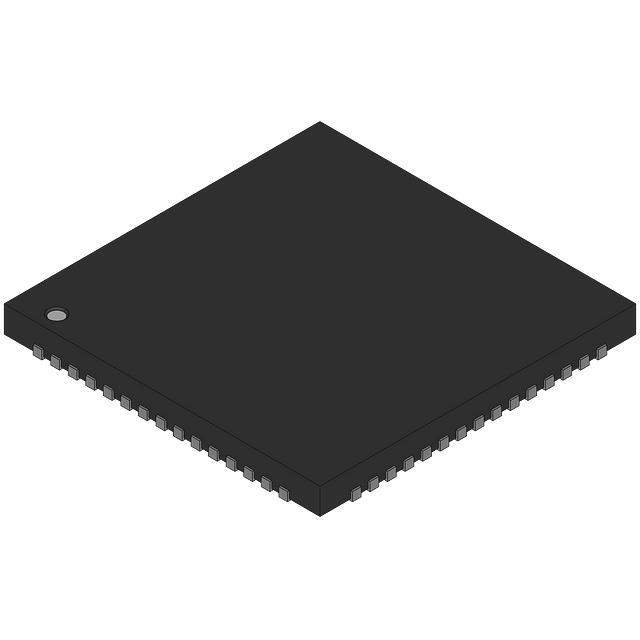

• Package: Comes in a compact, surface-mount QFN (Quad Flat No-lead) package, which is ideal for space-constrained applications.
• Temperature Range: Operates within an industrial temperature range, making it suitable for harsh environments.
• RoHS Compliant: The ADC12DS080CISQE/NOPB adheres to the Restriction of Hazardous Substances (RoHS) directive, making it an environmentally friendly choice.

Applications

• High-speed data acquisition systems
• Wireless and wired broadband communication
• Medical imaging equipment
• Radar and satellite communication systems
• Automated test equipment

The ADC12DS080CISQE/NOPB by Texas Instruments represents the pinnacle of ADC technology, providing robust performance and reliability for the most demanding applications. Its combination of speed, precision, and power efficiency, along with a user-friendly interface and a versatile temperature range, makes it a top choice for engineers and designers looking to push the boundaries of what's possible in electronic design.
