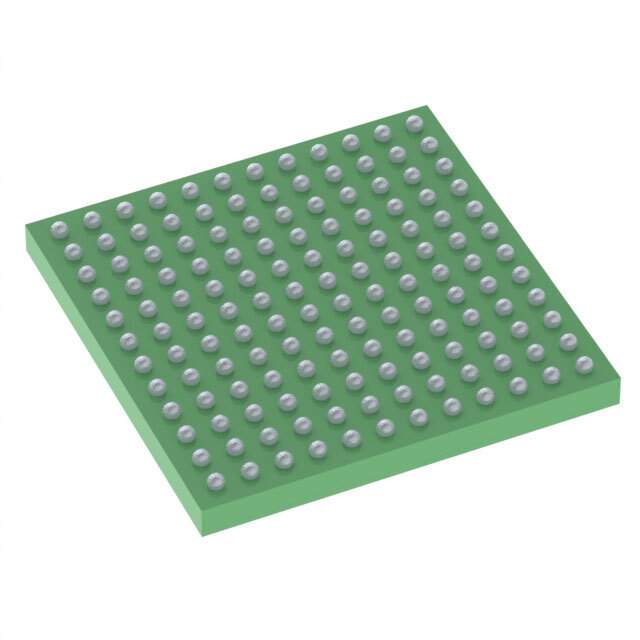

Introducing the ADC12DJ3200AAV from Texas Instruments

The ADC12DJ3200AAV is a cutting-edge analog-to-digital converter (ADC) brought to you by Texas Instruments, a leader in semiconductor technology. This high-performance product is designed to meet the rigorous demands of modern electronic systems, providing an exceptional combination of speed and resolution that is ideal for a wide range of applications, including test and measurement systems, communications equipment, and radar and imaging systems.

Key Features and Benefits

• High-Speed Performance: With a sampling rate of up to 3.2 GSPS (giga-samples per second) in dual-channel mode, and up to 6.4 GSPS in single-channel mode, the ADC12DJ3200AAV offers ultra-fast data acquisition capabilities. This makes it perfectly suited for high-bandwidth applications that require rapid signal processing.
• Exceptional Resolution: The converter boasts a 12-bit resolution, ensuring high-fidelity signal conversion with precise detail. This level of accuracy is critical in applications where signal integrity is paramount.
• Flexible Input Range: The ADC12DJ3200AAV provides a flexible input range, supporting both full-scale differential and single-ended inputs. This versatility allows designers to tailor the ADC to their specific system requirements.
• JESD204B Interface: Equipped with the JESD204B interface, the ADC ensures high-speed data transfer with reduced interface lines, simplifying board layout and reducing the overall system footprint.
• Integrated Digital Down Converter (DDC): The inclusion of an integrated DDC enhances the ADC's performance by providing digital down-conversion, decimation, and filtering, which minimizes the processing load on the system's FPGA or ASIC.
• Power Efficiency: Despite its high-speed operation, the ADC12DJ3200AAV is designed for power efficiency, making it suitable for systems where power consumption is a concern.

Applications

The ADC12DJ3200AAV is a versatile component that can be utilized in a variety of high-speed data acquisition systems. Its robust feature set makes it ideal for:

• Telecommunications infrastructure, such as 5G base stations
• High-speed data acquisition for medical imaging like MRI and CT scanners
• Advanced radar systems for both military and commercial aerospace applications
• Professional test and measurement equipment
• High-speed digital storage oscilloscopes (DSOs)

With its exceptional performance and versatility, the ADC12DJ3200AAV from Texas Instruments is a top choice for engineers and designers looking to push the boundaries of what's possible in electronic system design.
