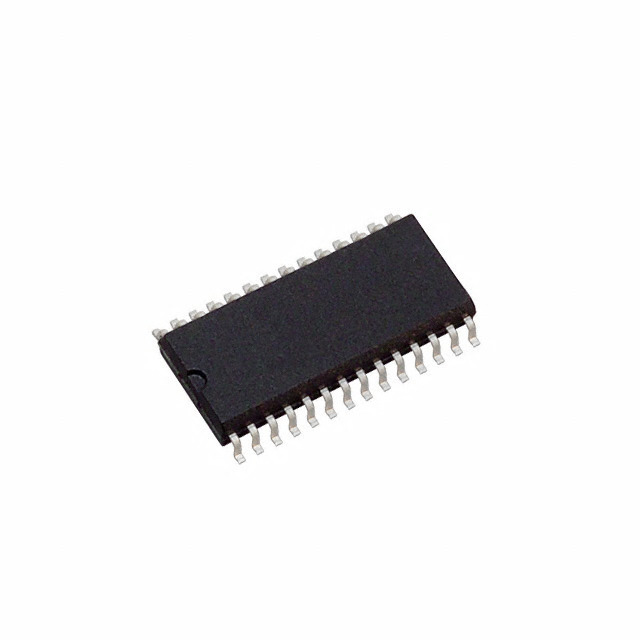

The Texas Instruments ADC12138CIWM is a high-performance, single-channel, 12-bit analog-to-digital converter (ADC) that offers an excellent balance of resolution, speed, and power. This precision ADC is designed for a wide range of applications, including industrial control systems, medical instrumentation, and data acquisition systems. With its compact surface-mount package, the ADC12138CIWM is ideal for space-constrained applications.

Key Features

• Resolution: 12-bit resolution provides fine detail in analog signal conversion, ensuring accurate representation of input signals.
• Sampling Rate: A high sampling rate allows the ADC12138CIWM to capture fast-changing signals, making it suitable for dynamic systems.
• Interface: The device features a simple, parallel interface that ensures ease of connectivity with microcontrollers and other digital systems.
• Low Power Consumption: Designed for efficiency, the ADC12138CIWM consumes minimal power, which is critical for battery-operated and power-sensitive applications.
• Input Range: The flexible input range accommodates a variety of signal levels, providing versatility in different operating environments.
• Programmable: Users can program the conversion rate and other parameters, allowing customization for specific application requirements.
• Reference Voltage: An external reference voltage can be used to set the full-scale range of the ADC, providing precision and adaptability.

Applications

The ADC12138CIWM is well-suited for a variety of applications that require high-resolution analog-to-digital conversion. It is commonly used in:

• Industrial automation and process control
• Medical equipment such as ECG and EEG monitors
• Data acquisition systems for scientific research
• Portable instrumentation where power efficiency is critical

With its robust features and flexible design, the Texas Instruments ADC12138CIWM is a versatile component that enhances the performance of electronic systems requiring precise analog-to-digital conversion.
