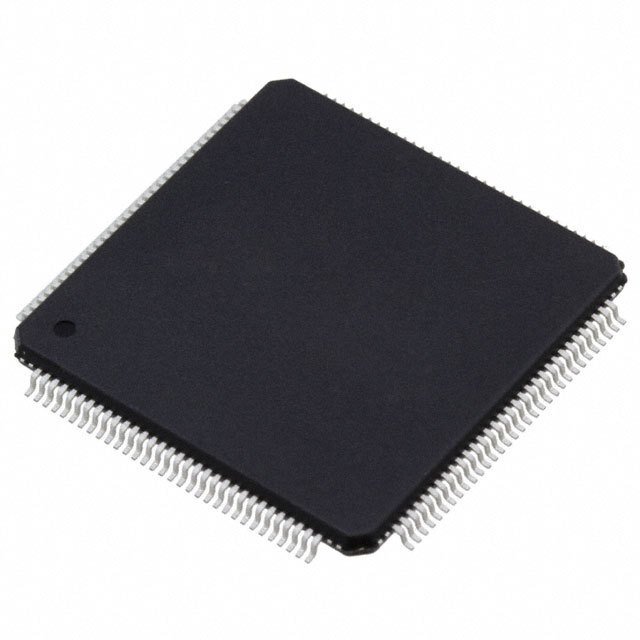

ADC08D502CIYB/NOPB

Part No ADC08D502CIYB/NOPB
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 8BIT DUAL 500MSPS 128LQFP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Texas Instruments
Packaging Tray
Resolution 8
Sampling Rate 500M
Number of Inputs 2
Input Type Differential
Data Interface LVDS - Parallel
Configuration MUX-S/H-ADC
Number of Converters 2
Architecture Folding Interpolating
Reference Type Internal
Operating Supply Voltage 1.8 V ~ 2 V
Voltage - Supply, Digital 1.8 V ~ 2 V
Features Simultaneous Sampling
Operating Temperature Range -40°C ~ 85°C
Package 128-LQFP Exposed Pad
Manufacturer Package 128-HLQFP (20x20)
Win Source Part Number 767728-ADC08D502CIYB/NOPB
Popularity Medium
Supply and Demand Status Limited
Family Name ADC08D502
Introduction Date August 30, 2012
ECCN 3A991.c.1
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian ADC08D502CIYB/NOPB CAD Model

Description

Product Overview: ADC08D502CIYB/NOPB

The ADC08D502CIYB/NOPB is a high-performance, low-power, 8-bit dual-channel analog-to-digital converter (ADC) designed and manufactured by Texas Instruments. This state-of-the-art ADC is ideal for applications that require high-speed data acquisition, such as wireless communication, test and measurement systems, and radar and satellite signal processing.

Key Features

  • Resolution: The ADC08D502CIYB/NOPB boasts an 8-bit resolution, providing a fine level of detail in the digital representation of the analog input signal.
  • Sampling Rate: With a maximum sampling rate of 500 MSPS (Mega Samples Per Second), this ADC is capable of converting analog signals with high frequency content, making it suitable for high-speed applications.
  • Dual-Channel: The dual-channel architecture allows for simultaneous sampling of two analog signals, which is beneficial for applications that require multi-channel data acquisition with tight channel-to-channel skew specifications.
  • Low Power Consumption: Designed with power efficiency in mind, the ADC08D502CIYB/NOPB minimizes power consumption, which is critical for portable and battery-operated devices.
  • Input Range: It features a flexible input range, which includes a 2 Vpp differential input range, making it versatile for a variety of signal types.
  • Output Format: The digital output data is presented in LVDS (Low-Voltage Differential Signaling) format, which reduces the noise and allows for high-speed data transmission.
  • Package: The device comes in a compact 48-pin WQFN (Wettable Flank Quad Flat No-Lead) package, which is suitable for space-constrained applications.

Applications

The ADC08D502CIYB/NOPB is designed to meet the demands of a wide range of applications. It is particularly well-suited for:

  • Wireless Communication Systems
  • Direct RF Down Conversion
  • Radar and Satellite Signal Processing
  • Test and Measurement Equipment
  • Medical Imaging Systems
  • Digital Oscilloscopes
  • Data Acquisition Systems

With its robust feature set and high-speed capabilities, the ADC08D502CIYB/NOPB from Texas Instruments is an excellent choice for designers looking to enhance the performance of their digital data acquisition systems while maintaining power efficiency and signal fidelity.
