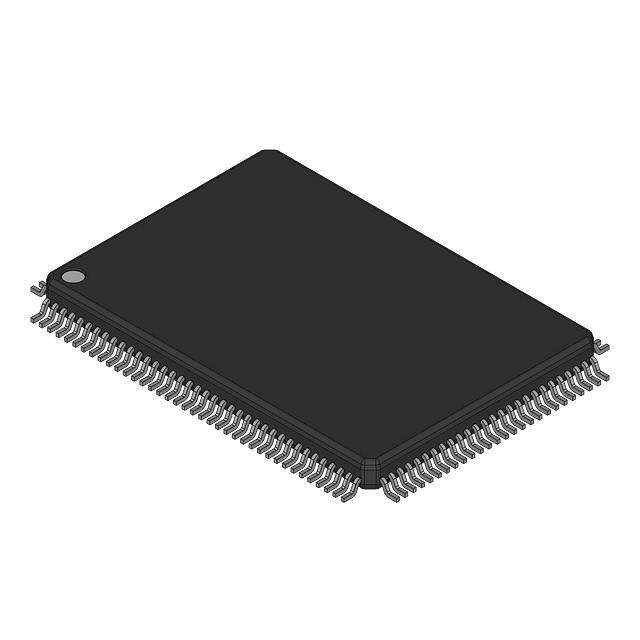

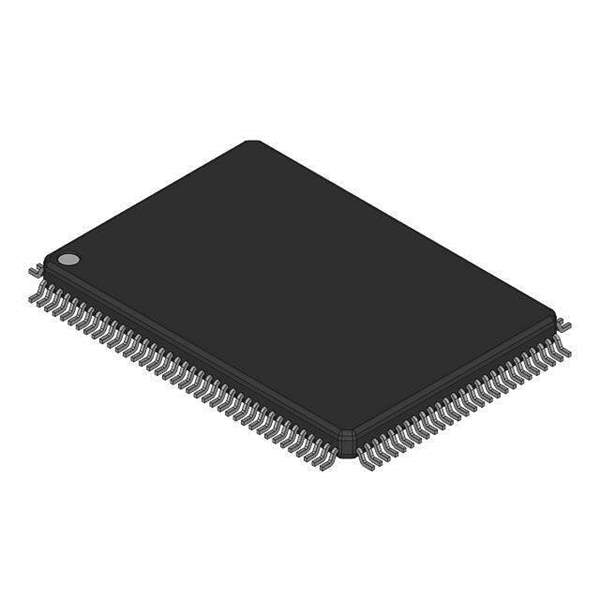

Introducing the ADC08D1520CIYB from Texas Instruments

The ADC08D1520CIYB is a state-of-the-art, high-performance dual 8-bit analog-to-digital converter (ADC) designed by Texas Instruments. This cutting-edge product is engineered to meet the demanding requirements of today's high-speed signal processing applications, making it an ideal choice for a wide range of industries, including telecommunications, radar systems, test and measurement equipment, and electronic warfare.

At the heart of the ADC08D1520CIYB lies its exceptional sampling rate of up to 1.52 GSPS (giga-samples per second) per channel in dual-channel mode, and up to 3.0 GSPS in single-channel interleaved mode. This impressive speed ensures that the ADC can capture even the fastest of signals without losing fidelity, making it perfect for high-frequency applications.

The device features an on-chip buffer and a sample-and-hold circuit that minimizes the sample time jitter, thus ensuring a high signal-to-noise ratio (SNR) and excellent dynamic performance. The ADC08D1520CIYB also boasts an integrated digital down-converter (DDC) with a 32-bit numerically controlled oscillator (NCO) and decimation filters, providing additional signal processing capabilities and reducing the data rate for downstream digital processing.

One of the key advantages of the ADC08D1520CIYB is its flexible input range. The full-scale input voltage can be adjusted from 1.0 Vpp to 2.0 Vpp, allowing users to optimize the converter for their specific signal amplitude, thereby maximizing the dynamic range and the performance of their system.

Designed with reliability in mind, the ADC08D1520CIYB operates over an industrial temperature range and is housed in a compact 292-ball BGA (ball grid array) package. This robust packaging not only ensures a small footprint on the system board but also facilitates better thermal performance and easier integration into a wide variety of designs.

In summary, the ADC08D1520CIYB from Texas Instruments is a versatile and powerful dual ADC solution that provides high-speed, high-resolution data conversion with advanced signal processing features. It is an excellent choice for designers looking to enhance the performance and accuracy of their digital systems.
