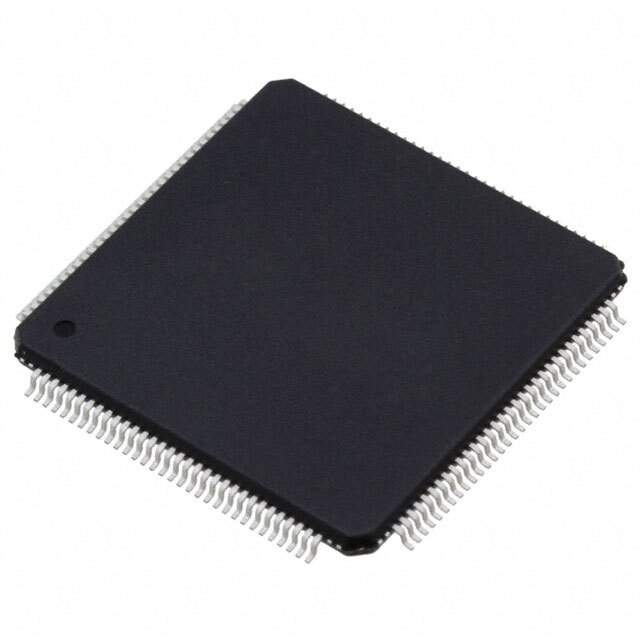

Product Overview: ADC08D1000CIYB/NOPB

The ADC08D1000CIYB/NOPB is a high-performance, low-power, 8-bit dual-channel analog-to-digital converter (ADC) from Texas Instruments. This state-of-the-art component is designed to meet the rigorous demands of high-speed data acquisition systems, including wireless communication, test and measurement equipment, and radar and satellite communication applications.

Key Features

• High-Speed Performance: The ADC08D1000CIYB/NOPB delivers a maximum sampling rate of 1 GSPS (Giga Samples Per Second), allowing it to accurately digitize high-frequency signals with exceptional fidelity.
• Dual-Channel Design: With its dual-channel architecture, this ADC can process two analog signals concurrently, which is essential for complex signal analysis and for systems that require simultaneous sampling of multiple inputs.
• Low Power Consumption: Despite its high-speed capabilities, the ADC08D1000CIYB/NOPB is engineered for efficiency, minimizing power usage and heat generation, which is critical for maintaining the reliability and longevity of electronic systems.
• Flexible Interface: The device includes a user-friendly, parallel LVDS (Low-Voltage Differential Signaling) output interface, which supports high-speed data transmission with reduced noise and improved signal integrity.
• Integrated Features: It comes with built-in features such as a programmable threshold detector and a flexible format for output data, which provide additional versatility and ease of integration into a wide range of applications.

Applications

Thanks to its robust design and high-speed performance, the ADC08D1000CIYB/NOPB is suitable for a variety of applications, such as:

• Wireless and Wired Broadband Communication
• High-Speed Data Acquisition Systems
• Test and Measurement Instruments
• Radar and Satellite Communication Systems
• Medical Imaging Equipment

Quality and Reliability

As with all Texas Instruments products, the ADC08D1000CIYB/NOPB is manufactured to the highest standards of quality and reliability. It is available in a compact 292-BGA (Ball Grid Array) package, ensuring a small footprint on the printed circuit board (PCB) and ease of mounting in space-constrained designs.

For engineers and designers looking for a high-speed, dual-channel ADC with low power consumption and a comprehensive set of features, the ADC08D1000CIYB/NOPB from Texas Instruments is an excellent choice that promises to deliver performance and reliability in the most demanding of applications.
