Product Overview: 74ACT16245DGGR from Texas Instruments

The 74ACT16245DGGR is a high-speed, 16-bit bidirectional transceiver designed by Texas Instruments, a leader in semiconductor design and manufacturing. This integrated circuit is part of the 74ACT family, known for its advanced CMOS logic that operates at high speeds while maintaining low power consumption. The device is specifically engineered to facilitate smooth and efficient data transfer between two buses of different voltage domains.

Key Features

• Wide Operating Voltage Range: The 74ACT16245DGGR operates at a wide voltage range of 4.5V to 5.5V, making it versatile for interfacing with both 5V and lower voltage logic levels without the need for level shifting.
• High-Speed Data Transfer: With its ability to handle fast data transfer rates, this transceiver is an excellent choice for applications that require quick and reliable data communication.
• Bi-Directional Interface: The device supports bidirectional data flow, providing flexibility in directional control and making it suitable for a variety of bus management situations.
• Bus-Hold Data Inputs: The inputs feature a bus-hold circuitry that eliminates the need for external pull-up or pull-down resistors, simplifying the design and reducing component count.
• Low Power Consumption: It is designed to consume minimal power, a critical feature for battery-powered and energy-efficient applications.

Applications

The 74ACT16245DGGR is ideal for use in a wide range of applications, including:

• Data communication systems
• Networking equipment
• Servers and telecommunications
• Microprocessor or microcontroller interface
• Peripheral device interface

Package and Quality

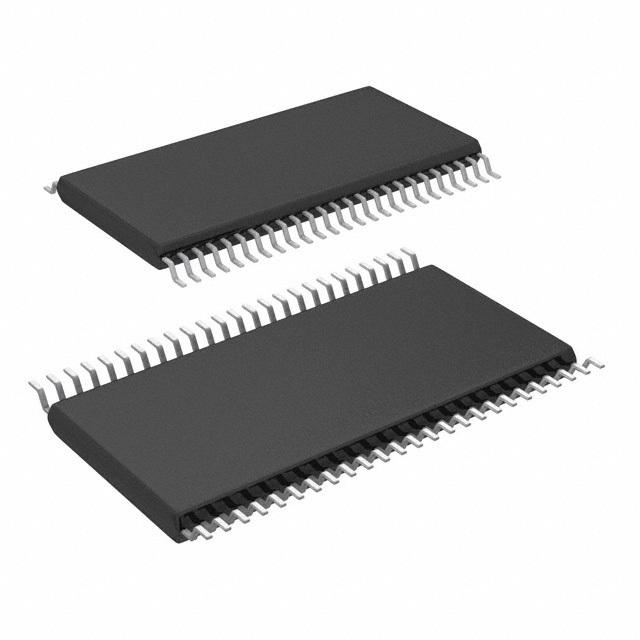

This transceiver comes in a TSSOP (Thin Shrink Small Outline Package) with 48 pins, denoted by the 'DGGR' suffix in its part number. The package is designed for space-saving and surface-mount technology (SMT). Texas Instruments ensures high-quality standards, with rigorous testing and quality control measures in place for each of its products.

For detailed specifications, application notes, and support documentation, engineers and designers are encouraged to visit the official Texas Instruments website or contact their support services.
