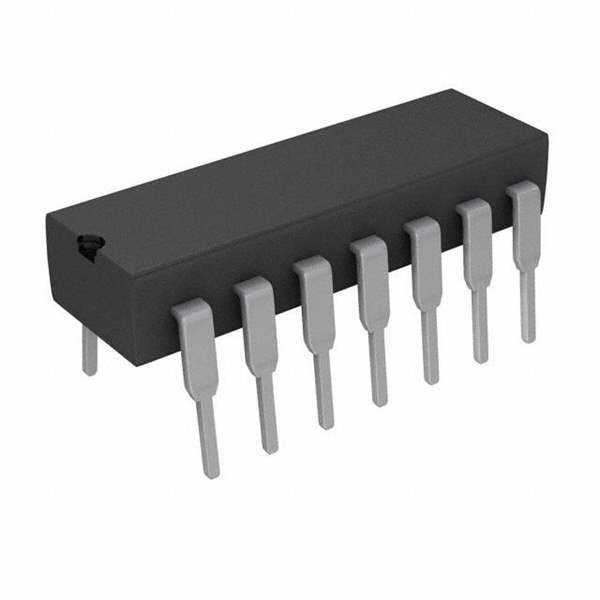

4002BE Texas Instruments
Same model may have multiple batches, images only for reference.

4002BE

Part No 4002BE
Manufacturer Texas Instruments
Catalog Logic - Gates and Inverters
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits(ICs)
Family Logic - Gates and Inverters
Manufacturer Texas Instruments
Win Source Part Number 161834-4002BE
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 4002BE CAD Model

Description

4002BE Description

The 4002BE is a versatile quad 2-input NOR gate IC that operates with a wide range of voltage levels, making it ideal for various digital logic applications. This CMOS logic device is known for its low power consumption and high-speed operations.

  • Applications/Projects:
    • Logic circuits in digital systems
    • Control systems
    • Automation projects
    • Signal processing
  • Features and Benefits:
    • Low power consumption
    • High noise immunity
    • Wide supply voltage range (3V to 15V)
    • Compatible with TTL
  • Additional Details:
    • Package Type: DIP, SOP
    • Temperature range: -40°C to +85°C
