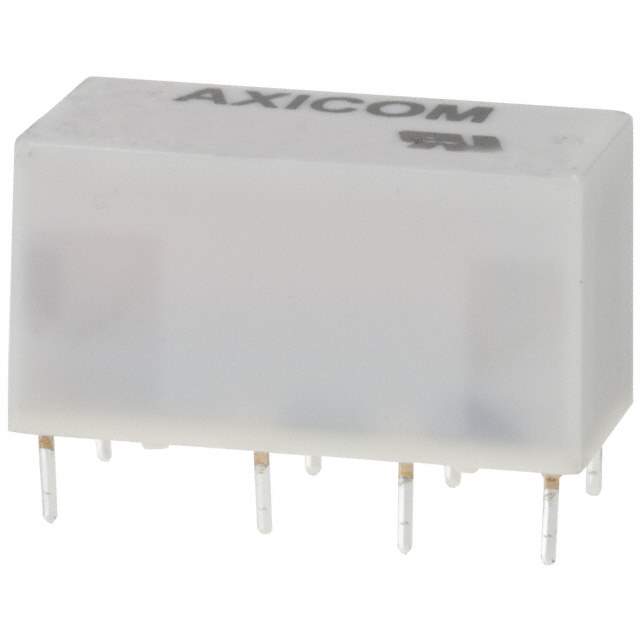

V23105-A5001-A201 Real Image1 V23105-A5001-A201 Real Image2
Same model may have multiple batches, images only for reference.
V23105-A5001-A201 Real Image1 V23105-A5001-A201 Real Image2
V23105-A5001-A201 Real Image1 V23105-A5001-A201 Real Image2
Same model may have multiple batches, images only for reference.

V23105-A5001-A201

Part No V23105-A5001-A201
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY TELECOM DPDT 3A 5V
Datasheet
V23105-A5001-A201 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type Telecom
Coil Type Non Latching
Coil Current 30mA
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 3A
Switching Voltage 250VAC, 220VDC - Max
Turn On Voltage (Max) 4 VDC
Turn Off Voltage (Min) 0.25 VDC
Operate Time 6ms
Release Time 4ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 150 mW
Coil Resistance 167 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 213819-V23105-A5001-A201
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian V23105-A5001-A201 CAD Model

Description

The V23105-A5001-A201 is a DPDT (2 Form C) relay manufactured by TE Connectivity Potter & Brumfield Relays.

  • Packaging: tube/rail packaging
  • Termination Style: PC pin
  • Coil Voltage: 5VDC
  • Coil Resistance: 167 Ohms
  • Coil Current: 30mA
  • Operate Time: 6ms
  • Release Time: 4ms
  • Contact Rating: 3A
  • Switching Voltage: 250VAC, 220VDC - Max
  • Turn On Voltage (Max): 4 VDC
  • Turn Off Voltage (Min): 0.25 VDC
  • Coil Power: 150 mW
  • Temperature Range: -40°C to 85°C
  • Supply and demand status: limited
