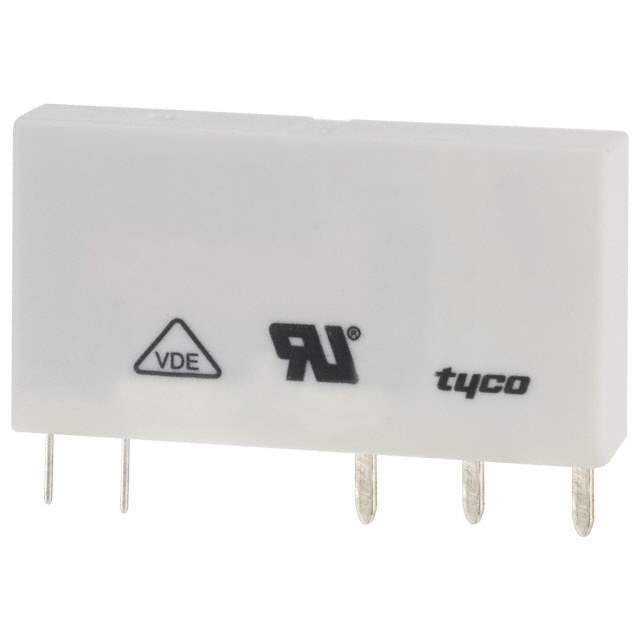

V23092-A1024-A301 Real Image
Same model may have multiple batches, images only for reference.

V23092-A1024-A301

Part No V23092-A1024-A301
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 6A 24V
Datasheet
V23092-A1024-A301 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 7mA
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 6A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 16.8 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 12ms
Release Time 5ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 170 mW
Coil Resistance 3.4 kOhms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 037611-V23092-A1024-A301
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Industrial, Power Management, Automation & Process Control
Ultra Librarian 3D Model Ultra Librarian V23092-A1024-A301 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays 037611-V23092-A1024-A301 is a general-purpose, non-latching relay with a single-pole double-throw (SPDT) contact form.

  • Contact Form: single-pole double-throw (SPDT)
  • Coil Voltage: 24VDC
  • Coil Resistance: 3.4 kOhms
  • Coil Current: 7mA
  • Contact Rating: 6A
  • Switching Voltage: 400VAC - Max
  • Turn On Voltage (max): 16.8 VDC
  • Turn Off Voltage (min): 1.2 VDC
  • Release Time: 5ms
  • Operate Time: 12ms
  • Feature: sealed fully
  • Packaging: tube/rail packaging
  • Termination Style: PC pin
  • Temperature Range: -40°C to 85°C
  • Commonly used in: industrial, power management, automation & process control applications.
