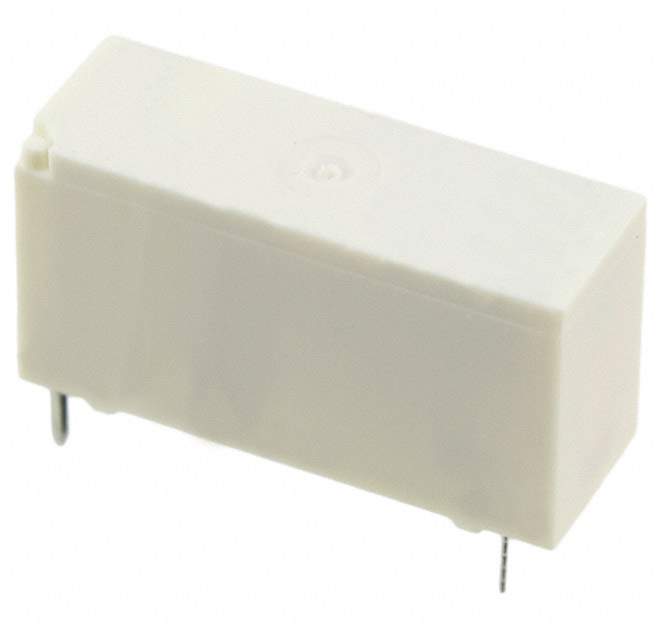

V23061-B1005-A401 Real Image
Same model may have multiple batches, images only for reference.

V23061-B1005-A401

Part No V23061-B1005-A401
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 8A 12V
Datasheet
V23061-B1005-A401 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 18.4mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 8A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 8.2 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 10ms
Release Time 5ms
Features Insulation - Class A, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 221 mW
Coil Resistance 652 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 213808-V23061-B1005-A401
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian V23061-B1005-A401 CAD Model

Description

The 213808-V23061-B1005-A401 is a general purpose SPDT (1 Form C) relay from TE Connectivity Potter & Brumfield Relays with a fully sealed insulation class A feature.

  • Mounting Style: Through Hole
  • Coil Voltage: 12VDC
  • Contact Rating (Current): 8A
  • Switching Voltage: 400VAC - Max
  • Temperature Range: -40°C to 85°C
