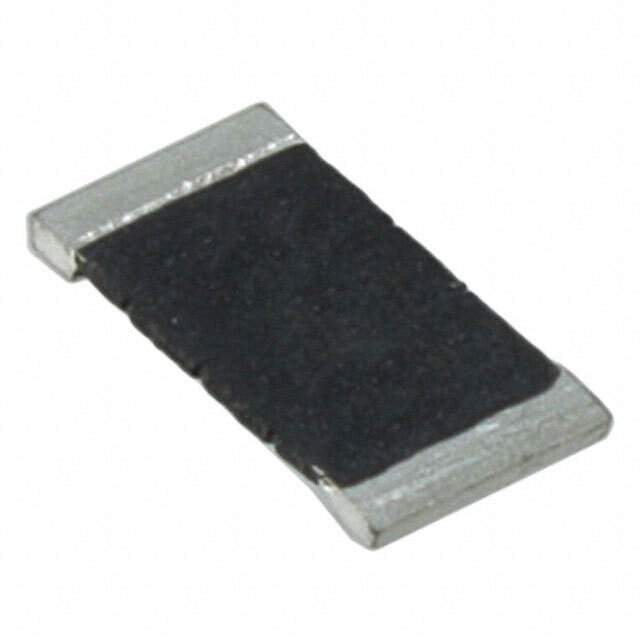

TL3AR018F Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series TL, CGS
Package Tape & Reel (TR),Cut Tape (CT)
Resistance 18 mOhms
Tolerance ±1%
Power (Watts) 1W
Composition Metal Foil
Features Current Sense
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Dimension 0.252" L x 0.126" W (6.40mm x 3.20mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
Base Product Number TL3AR
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 1625827-4-ND,1625827-4,A105814TR,A105814-ND,A105814CT,A105814,16258274
Standard Package 2,000
Win Source Part Number 1033475-TL3AR018F
Ultra Librarian 3D Model Ultra Librarian TL3AR018F CAD Model

Description

The TL3AR018F Chip Resistor is a surface mount device with a resistance of 18 mOhms and 1W power rating from TE Connectivity Passive Product.

  • Resistance: 18 mOhms
  • Power Rating: 1W
  • Tolerance: ±1%
  • Temperature Coefficient: ±75ppm/°C
  • Package Size: 2512 (6.4 x 3.2 mm)
  • Terminations: 2
  • Material: Metal Foil
  • Operating Temperature Range: -65°C to 170°C
  • RoHS Compliant: Yes
  • Failure Rate: Zero
