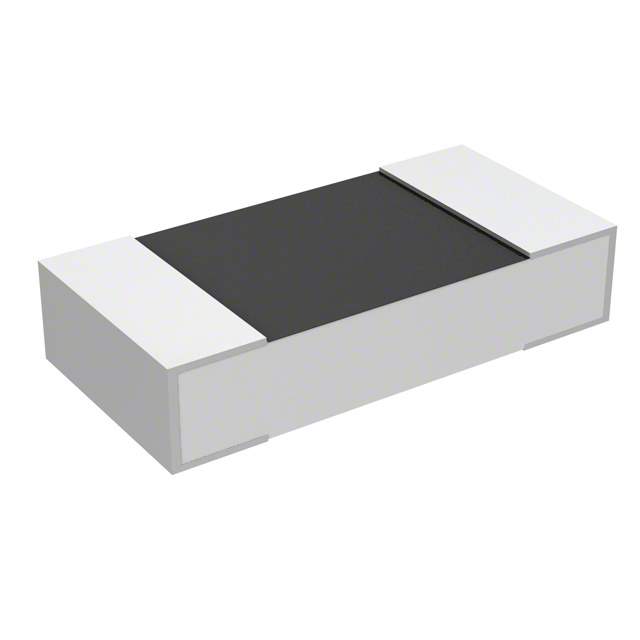

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series TL, CGS
Package Bulk
Resistance 15 mOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Metal Foil
Features Current Sense
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
Base Product Number TL2BR
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 1625826-1,1625826-1-ND
Standard Package 4,000
Win Source Part Number 1094602-TL2BR015F
Ultra Librarian 3D Model Ultra Librarian TL2BR015F CAD Model

Description

The 1094602-TL2BR015F is a chip resistor that belongs to the resistors category and is manufactured by CGS/TE Connectivity.

  • Win Source Part Number: 1094602-TL2BR015F
  • Series: TL and CGS
  • Application: Current sensing
  • Mounting: Surface mount
  • Power Rating: 0.25W
  • Resistance: 15 mOhms
  • Material: Metal foil
  • Tolerance: ±1%
  • Temperature Coefficient: ±75ppm/°C
  • Temperature Range: -65°C to 170°C
  • Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Package/Case: 1206 (3216 Metric)
