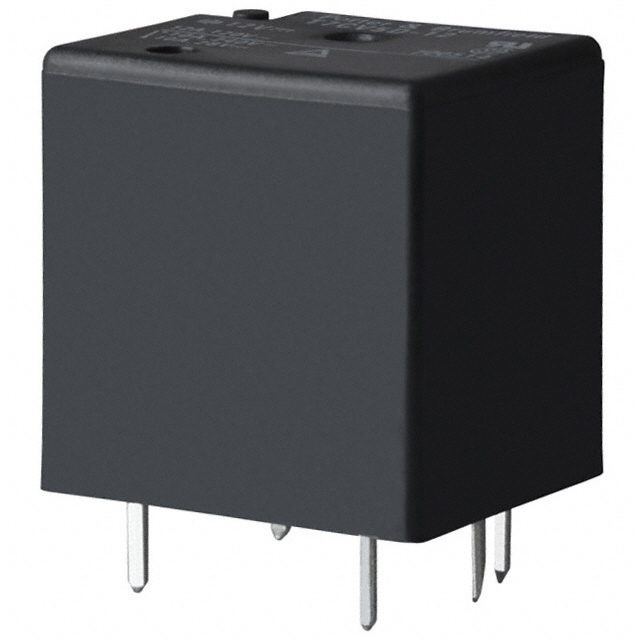

Same model may have multiple batches, images only for reference.
T9AS1D14-24 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

T9AS1D14-24

Part No T9AS1D14-24
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 30A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 30 A
Switching Voltage 277VAC - Max
Load - Max Switching 8310VA
Coil Current 41.7 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 15 ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Tin Oxide Indium Oxide (AgSnOInO)
Approval Agency cURus
Relay Type General Purpose
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1549586-T9AS1D14-24
Ultra Librarian 3D Model Ultra Librarian T9AS1D14-24 CAD Model

Description

N
