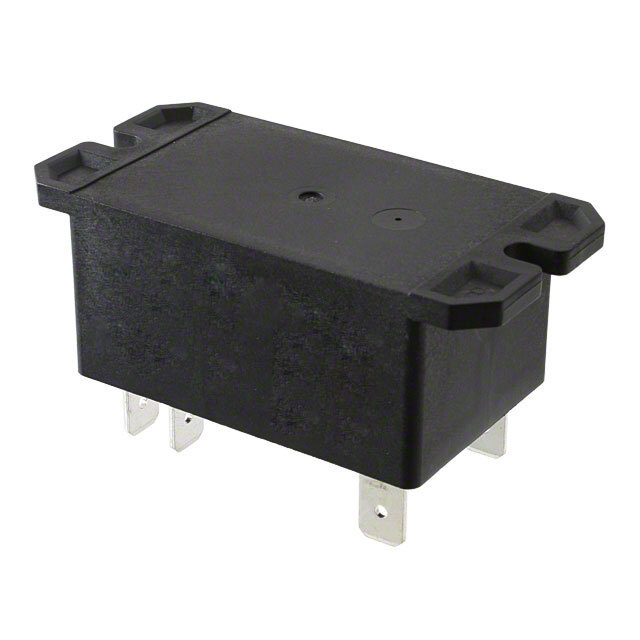

T92S7D22-12 TE Connectivity
Same model may have multiple batches, images only for reference.

T92S7D22-12

Part No T92S7D22-12
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description T92 Series Two-pole 30A PCB or Panel Mount Relay | RELAY GEN PURPOSE DPST 30A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Mounting Style Chassis Mount
Coil Voltage 12VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 30A
Switching Voltage 277VAC - Nom
Coil Current 140mA
Coil Type Non Latching
Termination Style Quick Connect - 0.250" (6.3mm)
Coil Insulation Class F
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 15ms
Release Time 15ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 86 Ohms
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Win Source Part Number 1263537-T92S7D22-12
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian T92S7D22-12 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays electronic component is a high-quality product that has gained moderate popularity in the market.

  • Type: General Purpose Relay
  • Mounting: Chassis Mount
  • Contact Form: DPST-NO
  • Switching Voltage: 277VAC
  • Coil Voltage: 12VDC
  • Contact Rating: 30A
  • Temperature Range: -55°C ~ 85°C
  • Manufacturer: TE Connectivity
