Same model may have multiple batches, images only for reference.

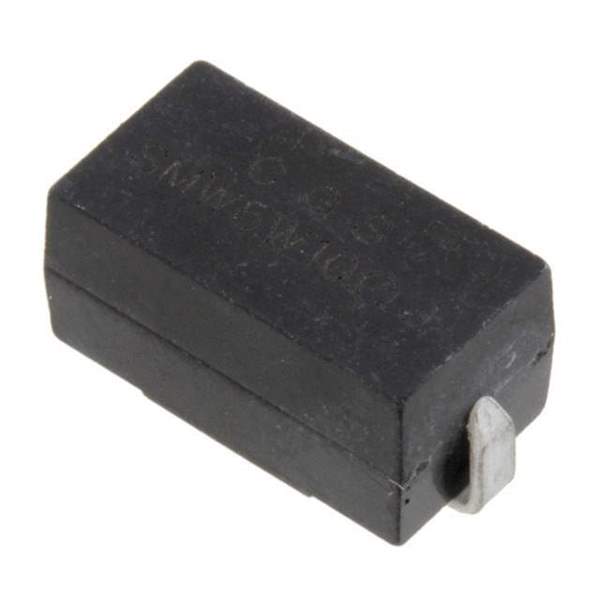

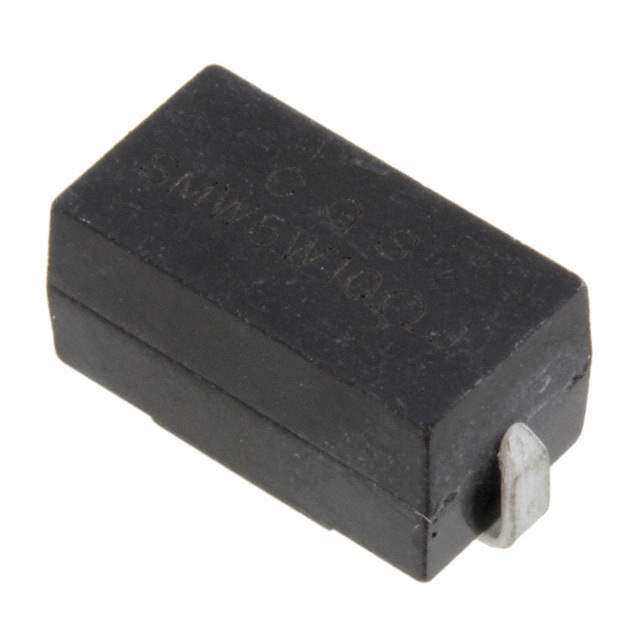

SMW5430RJT Real Image
Same model may have multiple batches, images only for reference.

SMW5430RJT

Part No SMW5430RJT
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES SMD 430 OHM 5% 5W 5329 / 430 Ohms ±5% 5W Chip Resistor 5329 (13573 Metric), J-Lead Flame Retardant Coating, Safety Wirewound
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series SMW, CGS
Package Tape & Reel
Resistance 430 Ohms
Tolerance ±5%
Power (Watts) 5W
Composition Wirewound
Features Flame Retardant Coating, Safety
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Package / Case 5329 (13573 Metric) , J-Lead
Supplier Device Package SMD
Size / Dimension 0.531" L x 0.287" W (13.50mm x 7.30mm)
Height - Seated (Max) 0.280" (7.10mm)
Number of Terminations 2
Base Product Number SMW5
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1349819-SMW5430RJT
Ultra Librarian 3D Model Ultra Librarian SMW5430RJT CAD Model

Description

The TE Connectivity Passive Product SMW5430RJT is a surface mount chip resistor.

  • Mounting Type: Surface Mount
  • Package: Tape and Reel
  • Standard Package: 500
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Power Rating: 5W
  • Resistance: 430 Ohms
  • Features: Flame Retardant Coating, Safety Features
  • Material: Wirewound
  • Terminations: 2
  • Package/Case: 5329 (13573 Metric), J-Lead
  • Height: 0.280" (7.10mm)
  • Temperature Range: -55°C to 200°C
  • REACH: Unaffected
