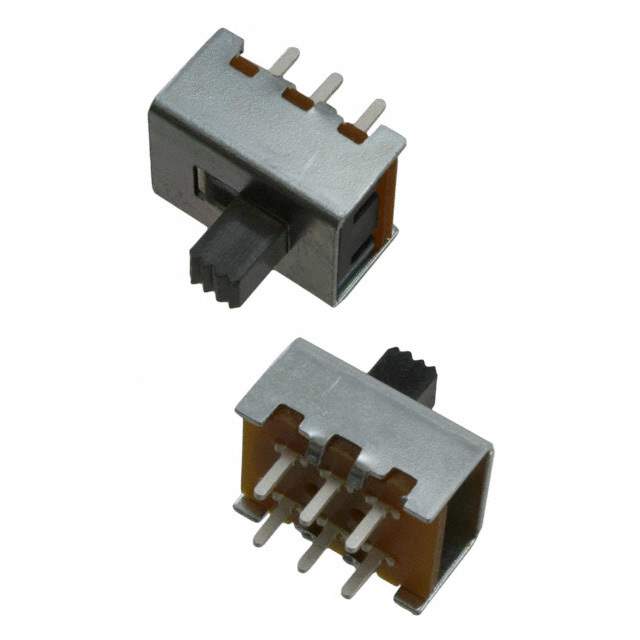

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Contact Current Rating 250 mA
Contact Plating Silver
Flammability Rating UL94 HB
Lead Free Yes
Length 13.59 mm
Material Steel
Maximum Operating Temperature 60 °C
Min Operating Temperature -10 °C
Mount PCB, Through Hole
Number of Pins 2
Number of Positions 2
Orientation Vertical
REACH SVHC Unknown
RoHS Compliant
Switch Function On-On
Termination PC Pin
Throw Configuration DPDT, SPDT
Voltage Rating (AC) 125 V
Voltage Rating (DC) 12 V
Width 13.59 mm
Win Source Part Number 1091907-SLS220PC04
Categories Slide Switches
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian SLS220PC04 CAD Model

Description

The TE Connectivity SLS220PC04 is a slide switch with a switch function of On-On and a contact current rating of 250mA.

  • Switch Function: On-On
  • Contact Current Rating: 250mA
  • Win Source Part Number: 1091907
  • Termination Style: PC Pin
  • Material: Steel
  • Contact Plating: Silver
  • Dimensions: 13.59mm (Width & Length)
  • Mounting: Through PCB
  • Flammability Rating: UL94 HB
  • Lead-Free: Yes
  • Operating Temperature: -10°C to 60°C
  • Voltage Rating: 125VAC / 12VDC
