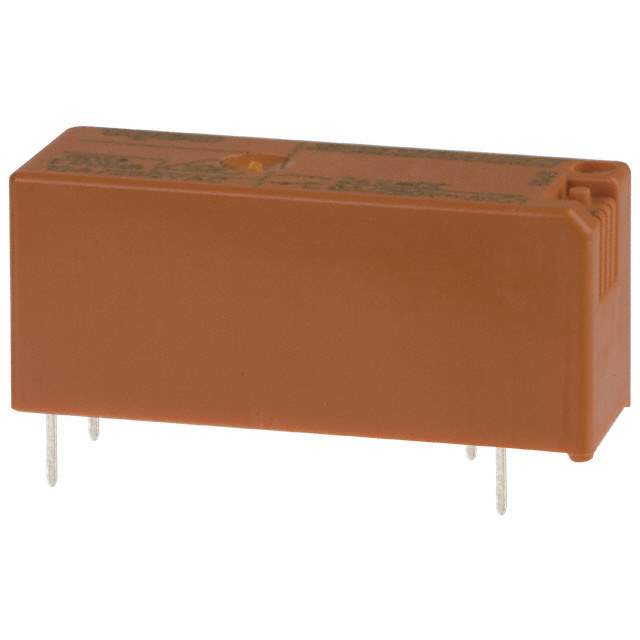

RY210024 Real Image
Same model may have multiple batches, images only for reference.

RY210024

Part No RY210024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 8A 24V / General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
Datasheet
RY210024 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series RY, SCHRACK
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 8 A
Switching Voltage 400VAC - Max
Coil Current 10.2 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 9 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 2.35 kOhms
Base Product Number RY21
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names 3-1393224-8,PB994
Standard Package 20
Win Source Part Number 1151166-RY210024
Ultra Librarian 3D Model Ultra Librarian RY210024 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays RY210024 is a power relay with a contact rating of 8 A.

  • Manufacturer: TE Connectivity Potter & Brumfield Relays
  • Contact Rating: 8 A
  • Coil Voltage: 24VDC
  • Coil Resistance: 2.35 kOhms
  • Relay Type: General purpose
  • Contact Form: SPDT (1 Form C)
  • Mounting: Through hole
  • Temperature Range: -40°C ~ 70°C
