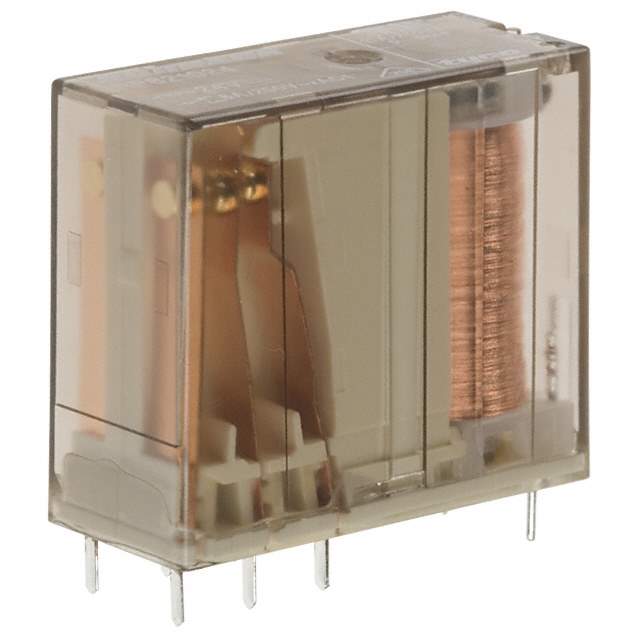

RP820012 Real Image
Same model may have multiple batches, images only for reference.

RP820012

Part No RP820012
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 8A 12V / General Purpose Relay DPDT (2 Form C) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series RP II/2, SCHRACK
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 8 A
Switching Voltage 400VAC - Max
Coil Current 44.4 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 9 ms
Release Time 3 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 270 Ohms
Base Product Number RP82
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names 9-1393234-0,PB949
Standard Package 500
Win Source Part Number 1041601-RP820012
Ultra Librarian 3D Model Ultra Librarian RP820012 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays RP II/2, SCHRACK series power relay is a high-quality, general-purpose relay that is designed to provide reliable performance.

  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 8 A
  • Coil Voltage: 12VDC
  • Mounting Style: Through-Hole
