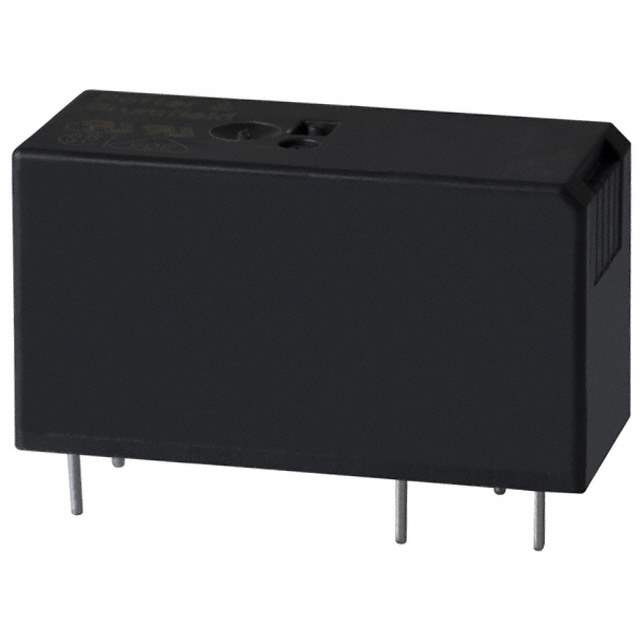

RT114012F Real Image
Same model may have multiple batches, images only for reference.

RT114012F

Part No RT114012F
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 12A 12V
Datasheet
RT114012F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 33.3mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 12A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 8ms
Release Time 6ms
Features Insulation - Class F, Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 400 mW
Coil Resistance 360 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 140830-RT114012F
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RT114012F CAD Model

Description

The RT114012F is a general-purpose SPDT (1 Form C) relay manufactured by TE Connectivity Potter & Brumfield Relays.

  • Mounting: Through-hole
  • Packaging: Tube/rail
  • Coil Voltage: 12VDC
  • Coil Resistance: 360 Ohms
  • Contact Rating (Current): 12A
  • Switching Voltage: 400VAC - Max
  • Turn On Voltage (Max): 8.4 VDC
  • Turn Off Voltage (Min): 1.2 VDC
  • Operating Temperature Range: -40°C to 85°C
