Products specifications Report Issue?

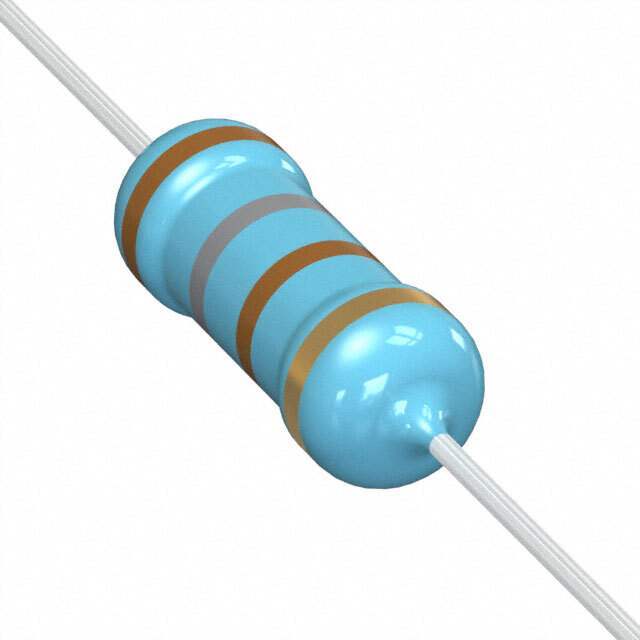

Win Source Part Number WS1307659-ROX1SJ180R
Manufacturer TE Connectivity Passive Product
Part Status Active
Category Resistors>Through Hole Resistors
Packaging  Cut Tape (CT) Tape & Box (TB)
Resistance (Ohms) 180 Ohms
Tolerance ±5%
Part Status Active
Power (Watts) 1W
Composition Metal Oxide Film
Temperature Coefficient ±350ppm/°C
Operating Temperature -55°C ~ 130°C
Package / Case Axial
Size / Dimension 0.138" Dia x 0.394" L (3.50mm x 10.00mm)
Ultra Librarian 3D Model Ultra Librarian ROX1SJ180R CAD Model

Description

The resistive element comprises a metal oxide film deposited on a ceramic former. The element is protected by a flameproof coating which will withstand overload conditions without flame or mechanical damage. They are recommended for use in applications such as line protection etc
