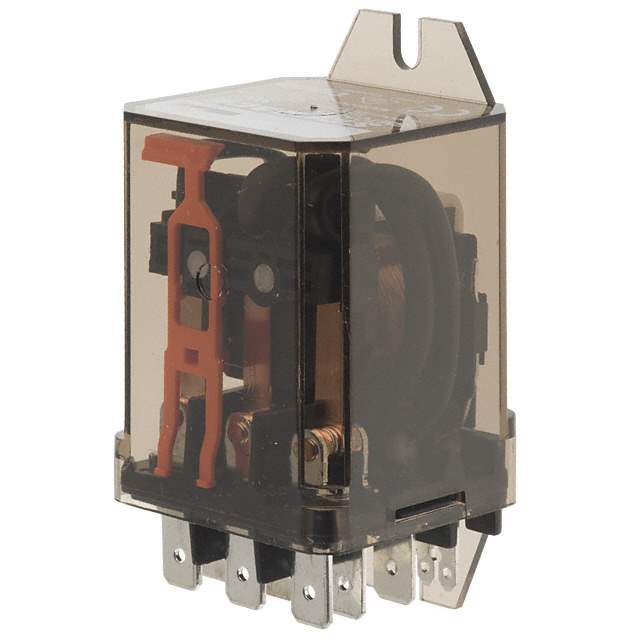

RM205730 Real Image
Same model may have multiple batches, images only for reference.

RM205730

Part No RM205730
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 16A 230V / Power Relay 230VAC 16A DPDT(73.5x38.5x35.5)mm Flange
Datasheet
RM205730 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Series RM, SCHRACK
Packaging Bulk
Relay Type General
Coil Type Non Latching
Coil Voltage 230VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 16A
Switching Voltage 440VAC - Max
Turn On Voltage (Maximum) 184 VAC
Turn Off Voltage (Minimum) 69 VAC
Features Mechanical Indicator
Mounting Chassis Mount
Termination Style Quick Connect - 0.250" (6.3mm)
Contact Material Silver Cadmium Oxide (AgCdO)
Coil Power 2.3 VA
Coil Resistance 8.3 kOhms
Operating Temperature Range -45°C ~ 60°C
Win Source Part Number 769454-RM205730
Popularity Medium
Supply and Demand Status Limited
Family Name RM205730
Introduction Date November 22, 2005
ECCN EAR99
Country of Origin Romania
Halogen Free Not Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian RM205730 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays RM205730 is a DPDT (2 Form C) type general relay with a chassis mount.

  • Coil Voltage: 230VAC
  • Coil Resistance: 8.3 kOhms
  • Contact Rating (Current): 16A
  • Switching Voltage: 440VAC - Max
  • Package Type: Bulk
  • Termination Style: Quick Connect - 0.250" (6.3mm)
  • Features: Mechanical Indicator
  • Operating Temperature Range: -45°C to 60°C
