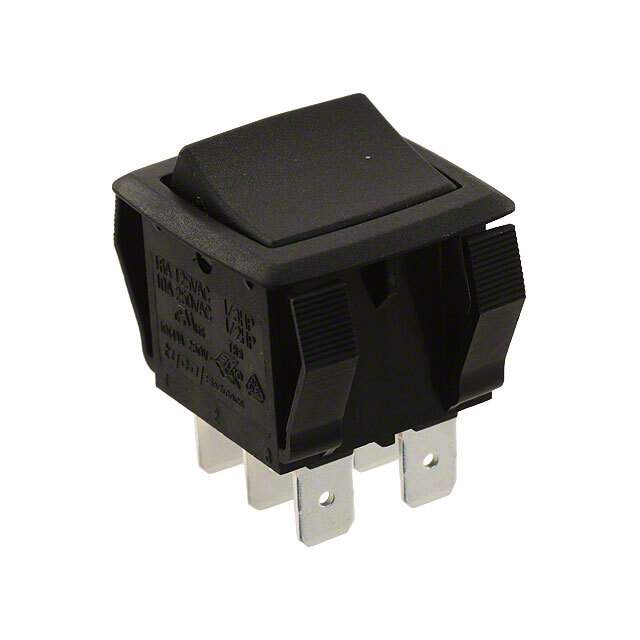

PRDDD1-16F-BB000 Real Image
Same model may have multiple batches, images only for reference.

PRDDD1-16F-BB000

Part No PRDDD1-16F-BB000
Manufacturer TE Connectivity
Catalog Rocker Switches
Description SWITCH ROCKER DPDT 16A 125V / Rocker Switch DPDT 16A (AC) 125 V Panel Mount, Snap-In
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series PRD
Package Bulk
Mounting Type Panel Mount, Snap-In
Circuit DPDT
Switch Function On-On
Current Rating (Amps) 16A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking No Marking
Termination Style Quick Connect - 0.250" (6.3mm)
Panel Cutout Dimensions Rectangular - 27.60mm x 25.40mm
Temperature Range - Operating -20°C ~ 85°C
Mechanical Life 100,000 Cycles
Electrical Life 6,000 Cycles
Base Product Number PRDDD1
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9065
Other Names 450-1026,PRDDD116FBB000,0-1571113-1,-PRDDD1-16F-BB000-SI,1571113-1
Standard Package 50
Win Source Part Number 1141645-PRDDD1-16F-BB000
Ultra Librarian 3D Model Ultra Librarian PRDDD1-16F-BB000 CAD Model

Description

The PRDDD1-16F-BB000 is a rocker switch from TE Connectivity ALCOSWITCH Switches that features a DPDT circuit and an on-on switch function.

  • Circuit: DPDT
  • Switch Function: on-on
  • Voltage Rating: 125 V AC
  • Current Rating: 16A AC
  • Termination Style: quick connect 0.250 inches or 6.3mm
  • Actuator Type: concave
  • Mounting: panel mounted and snap-in
  • Mechanical Life: 100,000 cycles
  • Electrical Life: 6,000 cycles
  • Panel Cutout Dimension: 27.60mm x 25.40mm
  • Actuator/Cap Color: black
