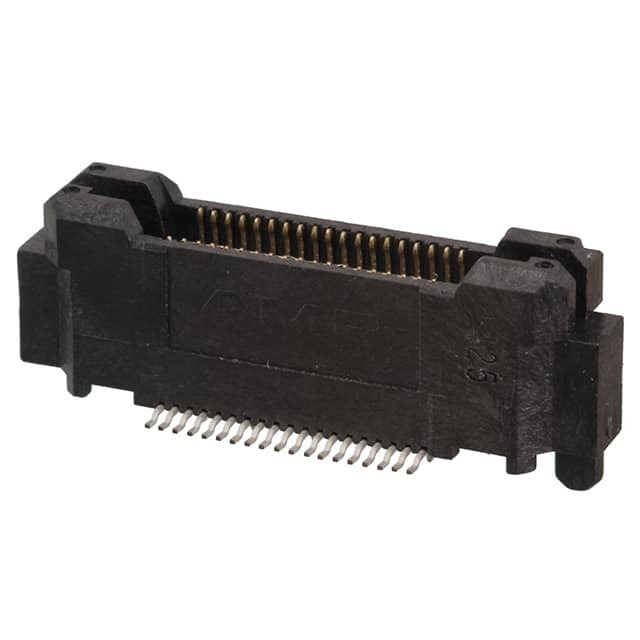

Same model may have multiple batches, images only for reference.
5767139-1
Same model may have multiple batches, images only for reference.

5767139-1

Part No 5767139-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN PLUG 38POS SMD GOLD / 38 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Datasheet
5767139-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr TE Connectivity
Series MICTOR
Package Tube
Product Status Obsolete
Connector Type Plug, Outer Shroud Contacts
Number of Positions 38
Pitch 0.025" (0.64mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Ground Bus (Plane)
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 9mm, 18mm
Height Above Board 0.343" (8.70mm)
Base Product Number 5767139
Standard Package 21 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 907503-5767139-1
Ultra Librarian 3D Model Ultra Librarian 5767139-1 CAD Model

Description

The 907503-5767139-1 is an array connector designed for use in electronic applications.

  • Category: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
  • Series: MICTOR
  • Positions: 38
  • Pitch: 0.025" (0.64mm)
  • Connector Type: Plug
  • Contacts: Outer Shroud
  • Rows: 2
  • Contact Finish: Gold
  • Package Quantity: 21 pieces
  • Mounting Type: Surface Mountable
  • Height Above Board: 0.343" (8.70mm)
  • Status: Active
  • Manufacturer: TE Connectivity
