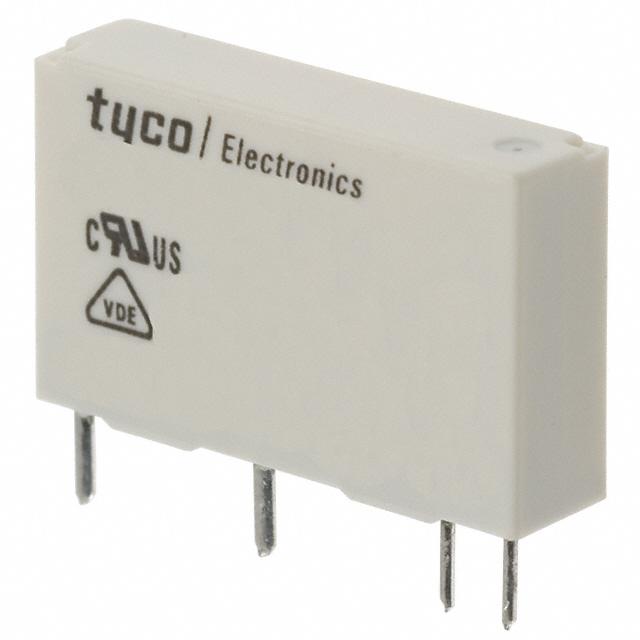

PCN-123D3MHZ TE Connectivity
Same model may have multiple batches, images only for reference.

PCN-123D3MHZ

Part No PCN-123D3MHZ
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 3A 23.5V
Datasheet
PCN-123D3MHZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 5.1mA
Coil Voltage 23.5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 3A
Switching Voltage 277VAC, 125VDC - Max
Operate Time 8ms
Release Time 3ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 120 mW
Coil Resistance 4.6 kOhms
Temperature Range - Operating -30°C to 70°C
Win Source Part Number 209712-PCN-123D3MHZ
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PCN-123D3MHZ CAD Model

Description

The TE Connectivity Potter & Brumfield Relay is a general purpose relay with a contact form of SPST-NO (1 Form A).

  • Contact Form: SPST-NO (1 Form A)
  • Design: Fully sealed
  • Coil Resistance: 4.6 kOhms
  • Coil Voltage: 23.5VDC
  • Contact Rating: 3A
  • Switching Voltage: 277VAC and 125VDC maximum
  • Mounting Style: Through hole
  • Operating Temperature: -30°C to 70°C
