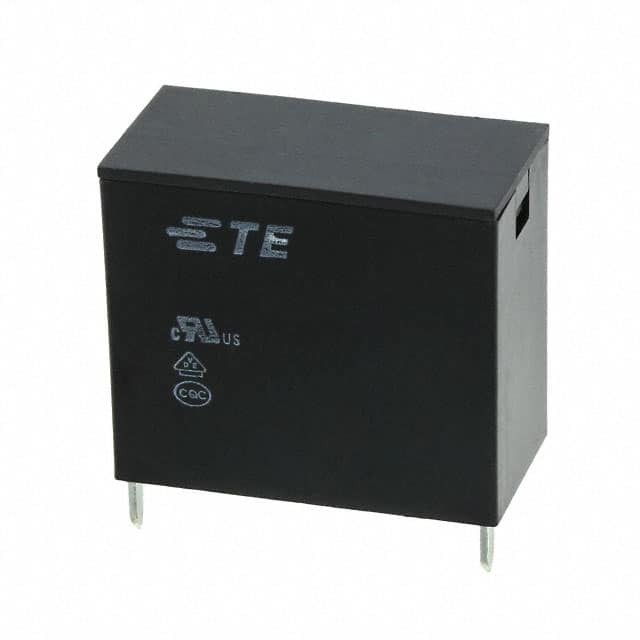

PCFN-112H2MS,02000 TE Connectivity
Same model may have multiple batches, images only for reference.

PCFN-112H2MS,02000

Part No PCFN-112H2MS,02000
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 26A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series PCFN Solar, OEG
Package Tube
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 26 A
Switching Voltage 277VAC - Max
Coil Current 125 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -25°C ~ 75°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 96 Ohms
Base Product Number PCFN-112
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1314645-PCFN-112H2MS,02000
Ultra Librarian 3D Model Ultra Librarian PCFN-112H2MS,02000 CAD Model

Description

The PCFN Solar relay from TE Connectivity Potter & Brumfield Relays is a reliable and durable choice for your needs.

  • Contact Configuration: SPST-NO (1 Form A)
  • Contact Rating: 26 A
  • Switching Voltage: 277VAC - Max
  • Coil Voltage: 12VDC
  • Coil Resistance: 96 Ohms
  • Coil Current: 125 mA
  • Operate Time: 20 ms
  • Release Time: 10 ms
  • Application: Power relays over 2 amps
  • Packaging: Tube
  • Seal: Flux Protection
  • Operating Temperature: -25°C ~ 75°C
