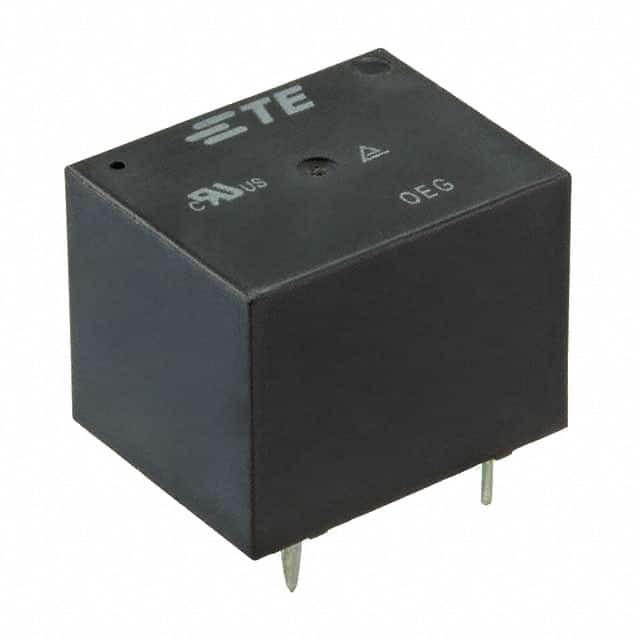

The ORWH-SH-112DM1F,000 is a power relay from TE Connectivity Potter & Brumfield Relays.

• Category: Power relays, over 2 amps
• Series: ORWH, OEG series
• Package: Tube
• Contact Form: SPST-NO (1 Form A)
• Contact Material: Silver zinc oxide (AgZnO)
• Standard Package: 25
• Coil Resistance: 400 Ohms
• Coil Current: 30 mA
• Operate Time: 10 ms
• Release Time: 5 ms
• Type: General-purpose relay
• Coil Type: Non-latching
• Coil Voltage: 12VDC
• Contact Rating (Current): 10 A
• Switching Voltage: 277VAC and 28VDC - Max
• Seal Rating: Sealed - fully
• Mounting Type: Through-hole
• Temperature Range: -30°C to 70°C
• Status: Obsolete
• Alternative Cross-Reference: 1-1721153-3, ORWH-SH-112DM1F 000, and ORWH-SH-112DM1F000
• MSL Level: 1 (unlimited)
• Coil Insulation: Class F
• Must Operate Voltage: 8.4VDC
• Must Release Voltage: 1.2VDC
• HTSUS: 8536.41.0020
• Solution: Reliable and efficient solution for your power relay needs.
