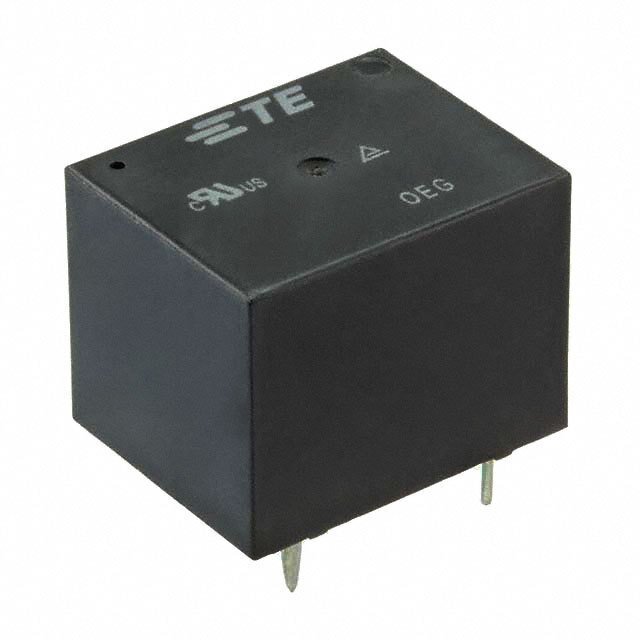

ORWH-SH-112D1F TE Connectivity
Same model may have multiple batches, images only for reference.

ORWH-SH-112D1F

Part No ORWH-SH-112D1F
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 30mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10A
Switching Voltage 277VAC, 28VDC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 10ms
Release Time 5ms
Features Insulation - Class F, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 360 mW
Coil Resistance 400 Ohms
Temperature Range - Operating -30°C to 70°C
Win Source Part Number 037537-ORWH-SH-112D1F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ORWH-SH-112D1F CAD Model

Description

The TE Connectivity Potter & Brumfield Relays is a general-purpose relay with a single-pole double-throw (SPDT) contact form.

  • Contact Form: SPDT
  • Coil Voltage: 12VDC
  • Contact Rating (Current): 10A
  • Seal: fully sealed
  • Insulation: class F insulation
  • Mounting Style: through-hole
  • Termination Style: PC pin
  • Operating Temperature: -30°C to 70°C
  • Turn On Voltage (Max): 8.4 VDC
  • Turn Off Voltage (Min): 1.2 VDC
  • Release Time: 5ms
  • Operate Time: 10ms
  • Category: Relays
  • Status: active
  • Supply and Demand Status: limited
