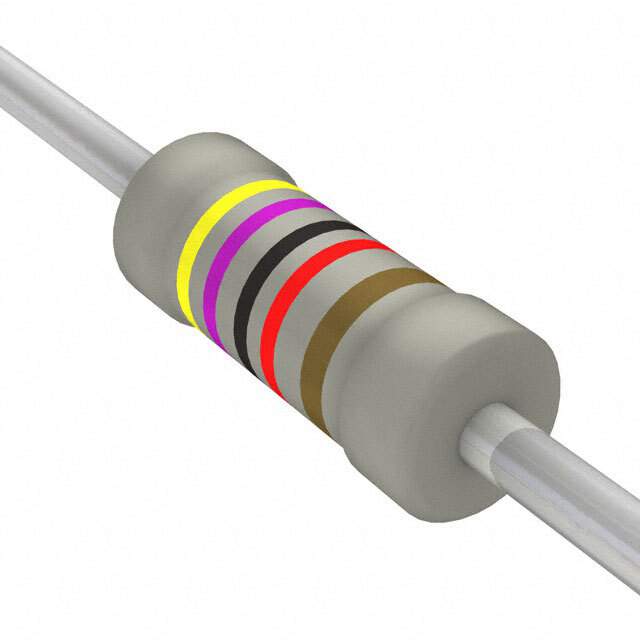

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr TE Connectivity Passive Product
Series LR, Neohm
Package Cut Tape (CT),Tape & Box (TB)
Resistance 47 kOhms
Tolerance ±1%
Power (Watts) 0.6W
Composition Metal Film
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.091" Dia x 0.244" L (2.30mm x 6.20mm)
Number of Terminations 2
Base Product Number LR1F
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Other Names A105961CT,16224881,1622488-1,1622488-1-ND,A105961TR-ND,A105961TB,A105961TR
Standard Package 4,000
Win Source Part Number 1123272-LR1F47K
Ultra Librarian 3D Model Ultra Librarian LR1F47K CAD Model

Description

The LR1F47K resistor from TE Connectivity's Neohm series is perfect for use in various electronic applications.

  • Series: Neohm
  • Power: 0.6W
  • Resistance: 47 kOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Current Rating: 750mA
  • Type: Axial
  • Package: Cut tape (CT) and tape & box (TB)
  • Operating Temperature: -55°C to 155°C
  • Dimension: 0.091" Dia x 0.244" L (2.30mm x 6.20mm)
  • Alternative Part: 1622488-1 and 16224881
