Same model may have multiple batches, images only for reference.

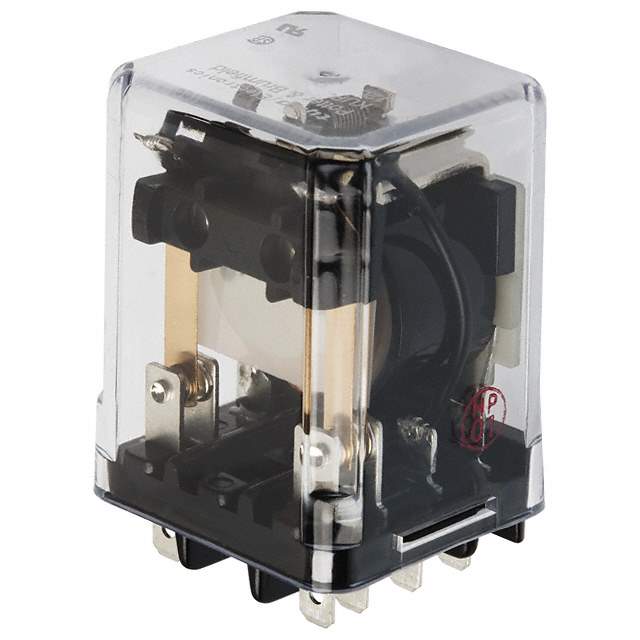

KUP-14D45-24 Real Image
Same model may have multiple batches, images only for reference.

KUP-14D45-24

Part No KUP-14D45-24
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series KUP
Package Bulk
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form 3PDT (3 Form C)
Contact Rating (Current) 10 A
Switching Voltage 240VAC - Max
Coil Current 51 mA
Coil Type Non Latching
Features Lighted Indicator, Test Button
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Must Operate Voltage 18 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -45°C ~ 70°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 472 Ohms
Base Product Number KUP-14D45
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1315272-KUP-14D45-24
Ultra Librarian 3D Model Ultra Librarian KUP-14D45-24 CAD Model

Description

The KUP-14D45-24 is a power relay from TE Connectivity Potter & Brumfield Relays.

  • Application: Electronic applications that require a power relay
  • Contact Form: 3PDT (3 Form C)
  • Termination Style: Plug-in, Quick Connect
  • Coil Voltage: 24VDC
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.41.0050
  • Base Product Number: KUP-14D45
