Same model may have multiple batches, images only for reference.

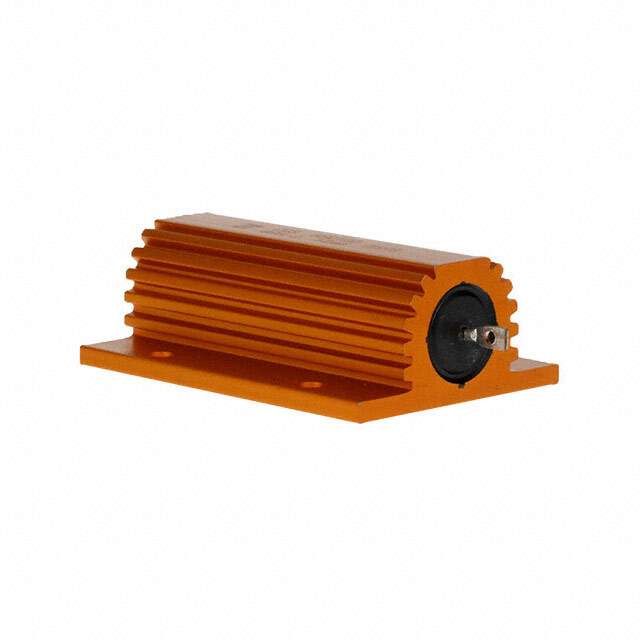

HSC1006R8J Real Image
Same model may have multiple batches, images only for reference.

HSC1006R8J

Part No HSC1006R8J
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 6.8 OHM 5% 100W  /  6.8 Ohms ±5% 100W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series HS, CGS
Package Bulk
Resistance 6.8 Ohms
Tolerance ±5%
Power (Watts) 100W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 2.579" L x 1.870" W (65.50mm x 47.50mm)
Height - Seated (Max) 1.024" (26.00mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Base Product Number HSC100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Other Names 416259998,4-1625999-8-ND,4-1625999-8,A102366
Standard Package 10
Win Source Part Number 1033502-HSC1006R8J
Ultra Librarian 3D Model Ultra Librarian HSC1006R8J CAD Model

Description

The HSC1006R8J is a chassis mount resistor from TE Connectivity Passive Product.

  • Resistance: 6.8 ohms
  • Power Rating: 100W
  • Material: Wirewound
  • Tolerance: ±5%
  • Package: Axial Box
  • Mounting: Flanges
  • Height (Seated): 1.024 inches (26.00mm)
  • Dimensions: 2.579 inches length and 1.870 inches width (65.50mm x 47.50mm)
  • Series: HS and CGS
  • Temperature Range: -55°C to 200°C
