Same model may have multiple batches, images only for reference.

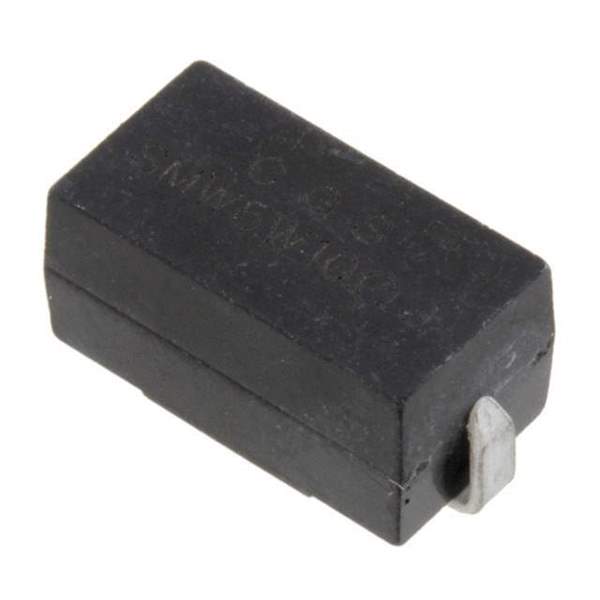

SMF5510KJT Real Image
Same model may have multiple batches, images only for reference.

SMF5510KJT

Part No SMF5510KJT
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES SMD 510K OHM 5% 5W 5329 / 510 kOhms ±5% 5W Chip Resistor 5329 (13573 Metric), J-Lead Flame Retardant Coating, Safety Metal Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series SMF, CGS
Package Tape & Reel
Resistance 510 kOhms
Tolerance ±5%
Power (Watts) 5W
Composition Metal Film
Features Flame Retardant Coating, Safety
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Package / Case 5329 (13573 Metric), J-Lead
Supplier Device Package SMD
Dimension 0.531" L x 0.287" W (13.50mm x 7.30mm)
Height - Seated (Max) 0.280" (7.10mm)
Number of Terminations 2
Base Product Number SMF5
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names A138705TR,SMF5510KJT-ND,7-1879234-3,7-1879234-3-ND,A138705DKR,A138705CT
Standard Package 500
Win Source Part Number 1078559-SMF5510KJT
Ultra Librarian 3D Model Ultra Librarian SMF5510KJT CAD Model

Description

The 1078559-SMF5510KJT is a chip resistor with a resistance of 510 kOhms and a power of 5W.

  • Resistance: 510 kOhms
  • Power: 5W
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Composition: Metal Film
  • Terminations: 2
  • Seated Height: 0.280" (7.10mm)
  • Dimension: 0.531" L x 0.287" W (13.50mm x 7.30mm)
  • Features: Flame Retardant Coating, Safety Compliant
  • Packaging: Tape & Reel
  • Standard Package: 500
  • Manufacturer: TE Connectivity Passive Product
