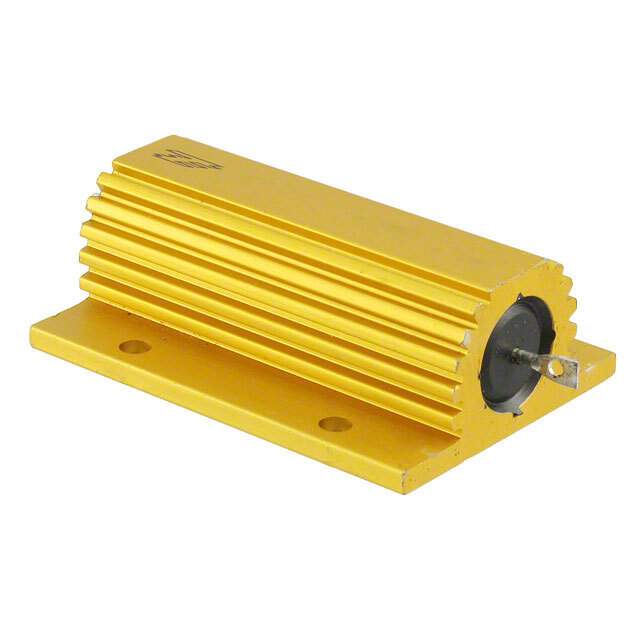

HSC100360RJ Real Image
Same model may have multiple batches, images only for reference.

HSC100360RJ

Part No HSC100360RJ
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series HS, CGS
Package Bulk
Resistance 360 Ohms
Tolerance ±5%
Power (Watts) 100W
Composition Wirewound
Temperature Coefficient ±30ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 2.579" L x 1.870" W (65.50mm x 47.50mm)
Height - Seated (Max) 1.024" (26.00mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Base Product Number HSC100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Win Source Part Number 1316017-HSC100360RJ
Ultra Librarian 3D Model Ultra Librarian HSC100360RJ CAD Model

Description

The TE Connectivity Passive Product HS series chassis mount resistors are designed for use in electronic circuits that require high reliability and performance.

  • Series: HS
  • Technology: Wirewound
  • Power Rating: 100W
  • Tolerance: ±5%
  • Resistance: 360 Ohms
  • Operating Temperature: -55°C ~ 200°C
  • Mounting Feature: Flange
  • Package / Case: Axial, Box
  • Temperature Coefficient: ±30ppm/°C
  • Coating: Aluminum
