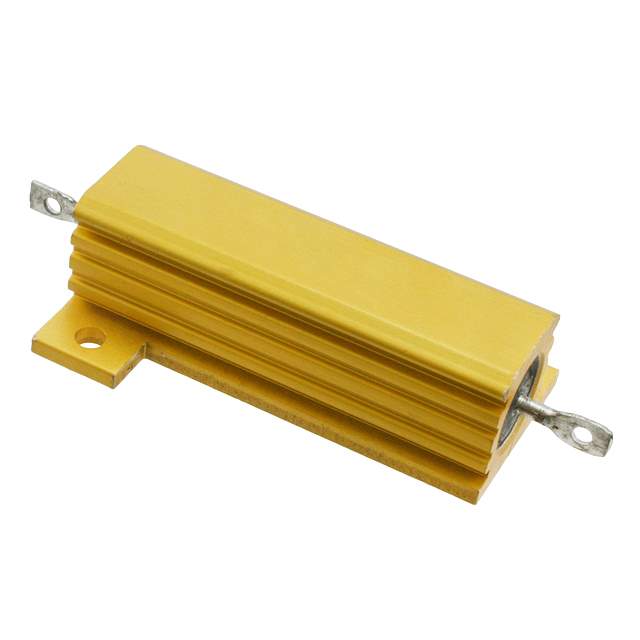

HSA508R2J Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series HS, CGS
Package Bulk
Resistance 8.2 Ohms
Tolerance ±5%
Power (Watts) 50W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 2.008" L x 1.181" W (51.00mm x 30.00mm)
Height - Seated (Max) 0.669" (17.00mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Base Product Number HSA50
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.29.0000
Other Names 816259846,A102444,8-1625984-6,8-1625984-6-ND
Standard Package 100
Win Source Part Number 1180576-HSA508R2J
Ultra Librarian 3D Model Ultra Librarian HSA508R2J CAD Model

Description

The HSA508R2J is a chassis mount resistor manufactured by TE Connectivity Passive Product. HSA508R2J is from TE Connectivity Passive Product.

  • Category: Resistors
  • Series: HS, CGS
  • Package: bulk
  • Standard Package: 100
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
  • Power Rating: 50W
  • Resistance: 8.2 Ohms
  • Coating, Housing Type: aluminum
  • Package/Case: axial, box
  • Temperature Range: -55°C ~ 200°C
