Same model may have multiple batches, images only for reference.

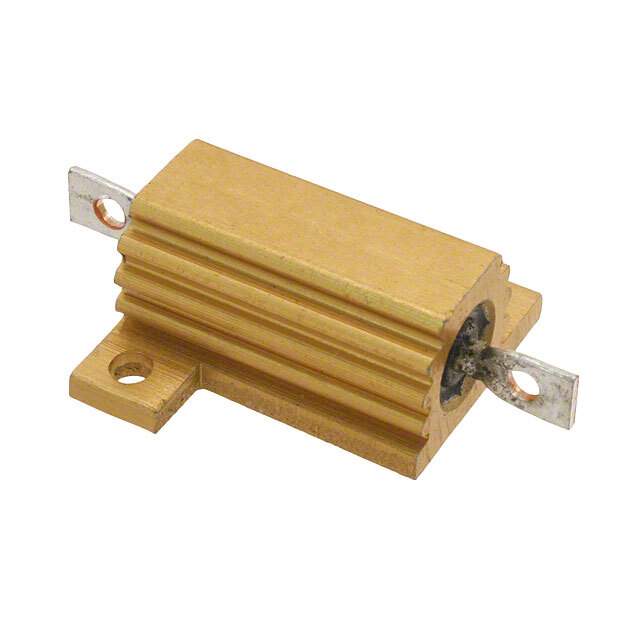

HSA1015RJ Real Image
Same model may have multiple batches, images only for reference.

HSA1015RJ

Part No HSA1015RJ
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 15 OHM 5% 16W / 15 Ohms ±5% 16W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series HS, CGS
Package Bulk
Resistance 15 Ohms
Tolerance ±5%
Power (Watts) 16W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 0.827" L x 0.827" W (21.00mm x 21.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Lead Style Solder Lugs
Package / Case Axial, Box
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0080
Other Names 1-1625966-0,A102409,116259660,1-1625966-0-ND
Standard Package 200
Win Source Part Number 1167519-HSA1015RJ
Ultra Librarian 3D Model Ultra Librarian HSA1015RJ CAD Model

Description

The HSA1015RJ is a chassis mount resistor that is part of the HS, CGS series. The component is designed for through-hole mounting and comes in a bulk package. It has a tolerance of ±5% and a temperature coefficient of ±50ppm/°C. The component has a power of 16W and a resistance of 15 Ohms. The mounting feature of this component is flanges, and it is composed of wirewound material. The temperature range for operating this component is -55°C ~ 200°C. The manufacturer of this component is TE Connectivity Passive Product, and the Win Source part number is 1167519-HSA1015RJ.
