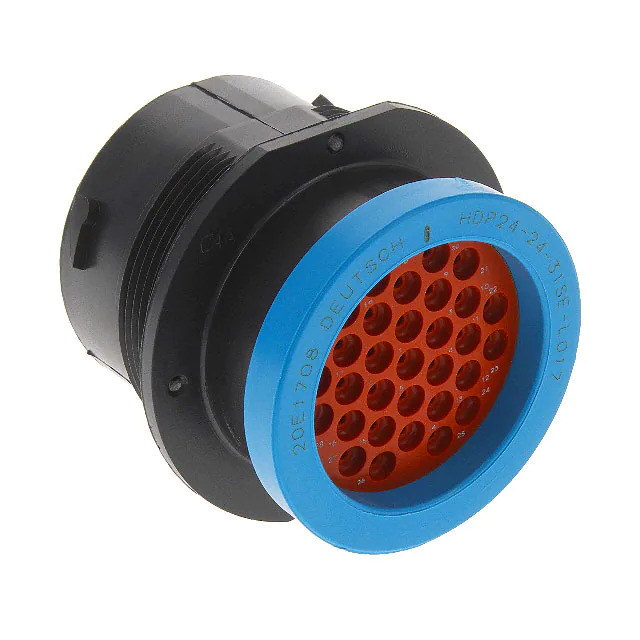

HDP24-24-31SE-L017 TE Connectivity
Same model may have multiple batches, images only for reference.

HDP24-24-31SE-L017

Part No HDP24-24-31SE-L017
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Description CONN RCPT HSG FMALE 31POS PNL MT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Housings
Mfr TE Connectivity Deutsch Connectors
Series HDP20
Package Bulk
Product Status Active
Connector Type Receptacle Housing
Type For Female Sockets
Number of Positions 31
Shell Size - Insert 24-31
Shell Size, MIL -
Contact Type Crimp
Contact Size 16
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Polyamide (PA66), Nylon 6/6, Glass Filled
Shell Finish -
Housing Color Black, Blue
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-1
Features Dust Cap, Ring Adapter
Shielding Unshielded
Note Contacts Not Included; Jam Nut Not Included
Includes -
Insert Material Polyetherimide (PEI)
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HDP24
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1366116-HDP24-24-31SE-L017
Ultra Librarian 3D Model Ultra Librarian HDP24-24-31SE-L017 CAD Model

Description

The HDP24-24-31SE-L017 is a circular connector housing from TE Connectivity Deutsch Connectors.

  • Mounting Type: Panel Mount
  • Connector Type: Receptacle Housing
  • Gender: Female Sockets
  • Fastening Type: Bayonet Lock
  • Shell Size: 24-31
  • Ingress Protection: IP68
  • Features: Dust Tight and Waterproof
  • Housing Material: Polyamide (PA66), Nylon 6/6, Glass Filled Material
  • Additional Features: Dust Cap and Ring Adapter
  • Housing Colors: Black and Blue
