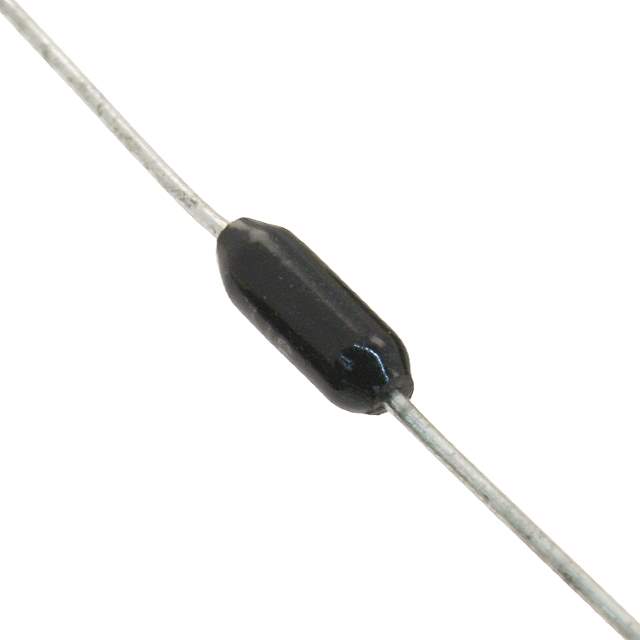

H8316RBYA Real Image
Same model may have multiple batches, images only for reference.

H8316RBYA

Part No H8316RBYA
Manufacturer TE Connectivity
Catalog Through Hole Resistors
Description RES 316 OHM 0.1% 1/4W AXIAL / 316 Ohms ±0.1% 0.25W, 1/4W Through Hole Resistor Axial Pulse Withstanding Metal Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr TE Connectivity Passive Product
Series Holco, Holsworthy
Package Bulk
Resistance 316 Ohms
Tolerance ±0.1%
Power (Watts) 0.25W, 1/4W
Composition Metal Film
Features Pulse Withstanding
Temperature Coefficient ±15ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.098" Dia x 0.283" L (2.50mm x 7.20mm)
Number of Terminations 2
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0090
Other Names 4-1879663-6-ND,4-1879663-6
Standard Package 500
Win Source Part Number 1161599-H8316RBYA
Ultra Librarian 3D Model Ultra Librarian H8316RBYA CAD Model

Description

This electronic component is a through-hole resistor manufactured by TE Connectivity Passive Product with a resistance of 316 ohms and a power of 0.25W, 1/4W.

  • Type: Metal Film
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±15ppm/°C
  • Package: Bulk
  • Standard Package: 500
  • Feature: Pulse Withstanding
  • Temperature Range: -55°C to 155°C
  • Dimension: 0.098 inches Dia x 0.283 inches L (2.50mm x 7.20mm)
