Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr TE Connectivity Passive Product
Series Holco, Holsworthy
Package Bulk
Resistance 1.96 kOhms
Tolerance ±0.1%
Power (Watts) 0.5W, 1/2W
Composition Metal Film
Features Pulse Withstanding
Temperature Coefficient ±15ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.146" Dia x 0.394" L (3.70mm x 10.00mm)
Number of Terminations 2
Base Product Number H4
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1314947-H41K96BYA
Ultra Librarian 3D Model Ultra Librarian H41K96BYA CAD Model

Description

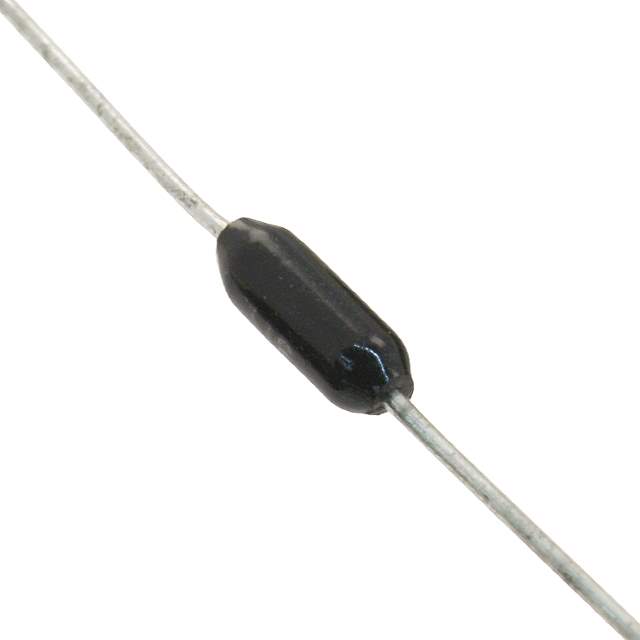

The H41K96BYA is a through-hole resistor manufactured by TE Connectivity Passive Product.

  • Mounting Type: Through-Hole
  • Composition: Metal Film
  • Tolerance: ±0.1%
  • Resistance: 1.96 kOhms
  • Power Rating: 0.5W
  • Application: Pulse-Withstanding
  • Temperature Coefficient: ±15ppm/°C
  • Package: Axial
  • Dimension: 0.146" Dia x 0.394" L (3.70mm x 10.00mm)
  • Temperature Range: -55°C ~ 155°C
  • ECCN: EAR99
