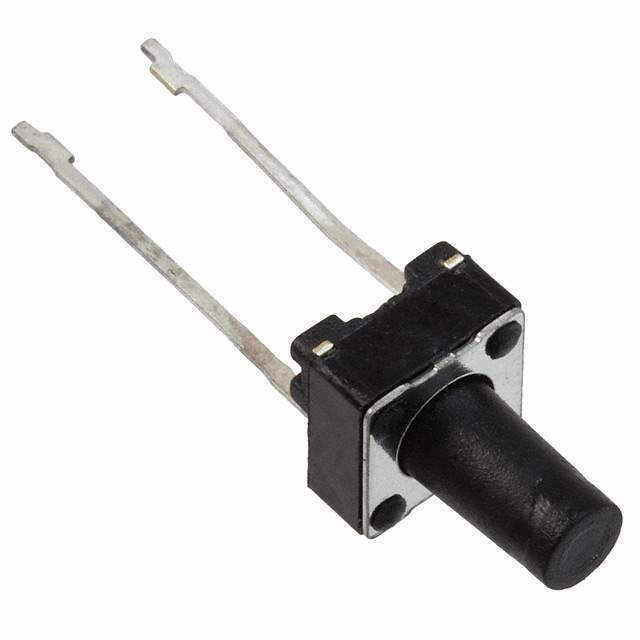

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1309698-FSM8JRT
Manufacturer TE Connectivity ALCOSWITCH Switches
Category Switches > Tactile Switches
Part Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Type Through Hole
Actuator Height off PCB, Vertical 9.50mm
Actuator Orientation Top Actuated
Ultra Librarian 3D Model Ultra Librarian FSM8JRT CAD Model

Description

Round Actuator Style, NO, Copper Alloy, Silver, Low Profile, 50mA Contact Current Rating, Alcoswitch FSMJRT, Tactile Switches
