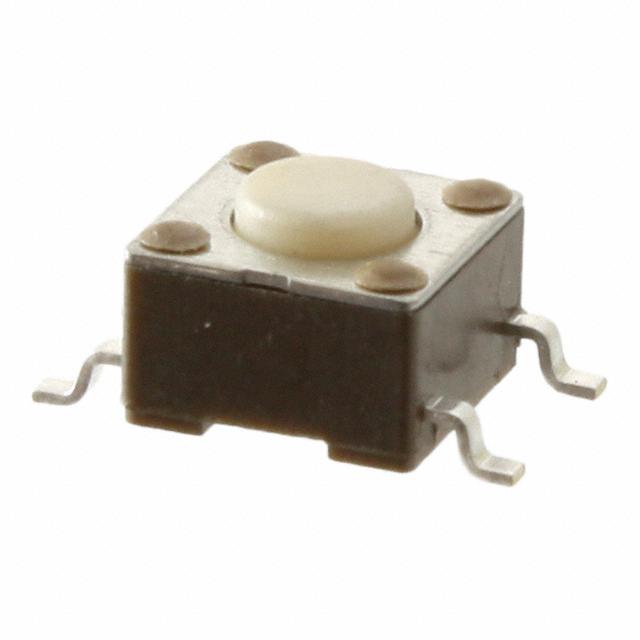

FSM2JSMAATR TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Packaging Reel - TR
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 4.30mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 260gf
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Temperature Range - Operating -35°C to 85°C
Win Source Part Number 1003099-FSM2JSMAATR
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian FSM2JSMAATR CAD Model

Description

The TE Connectivity ALCOSWITCH Switches 1003099-FSM2JSMAATR is a SPST-NO Off-Mom switch with a gull wing termination style.

  • Termination Style: Gull Wing
  • Actuator Material: Polyamide (PA) and Nylon
  • Actuator Type: Standard
  • Actuation Orientation: Top Actuated
  • Switch Travel: 0.25mm
  • Contact Rating: 0.05A @ 24VDC
  • Outline: 6.00mm x 6.00mm
  • Illumination: Non-Illumination
  • Operating Force: 260gf
  • Mechanical Life: 100,000 Cycles
  • Temperature Range: -35°C to 85°C
  • Actuator Height off PCB, Vertical: 4.30mm
  • Popularity: Popular
  • Supply and Demand: Sufficient
