Products specifications Report Issue?

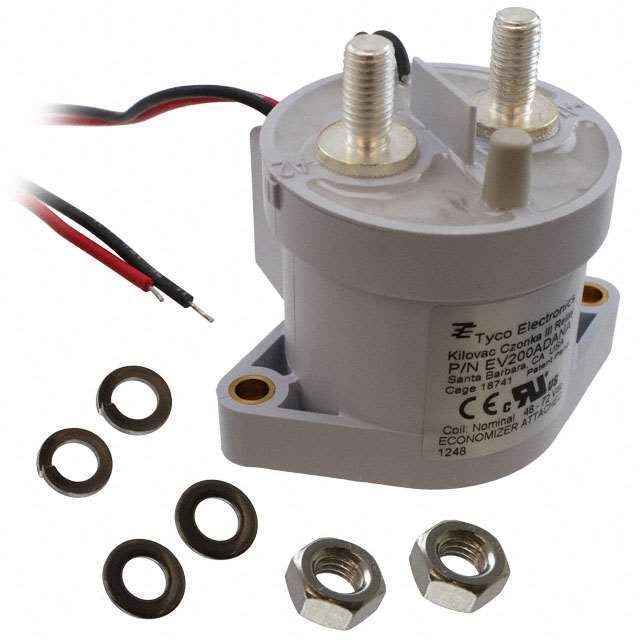

Win Source Part Number WS1304383-EV200ADANA
Manufacturer TE Connectivity Aerospace, Defense and Marine
Category Relays -Contactors (Electromechanical)
Packaging  Bulk
Part Status Active
Mounting Type Chassis Mount
Coil Voltage 32 ~ 95VDC
Contact Form SPST-NO (DM) (1 Form X)
Contact Rating (Current) 500 A
Switching Voltage 900VDC - Max
Features Sealed - Hermetically
Ultra Librarian 3D Model Ultra Librarian EV200ADANA CAD Model

Description

High Voltage Relays, 12 – 900VDC Contact Voltage Rating, Contact Arrangement 1 Form X, SPST-NO, Flying Lead, Stud Terminals, Kilovac EV200
