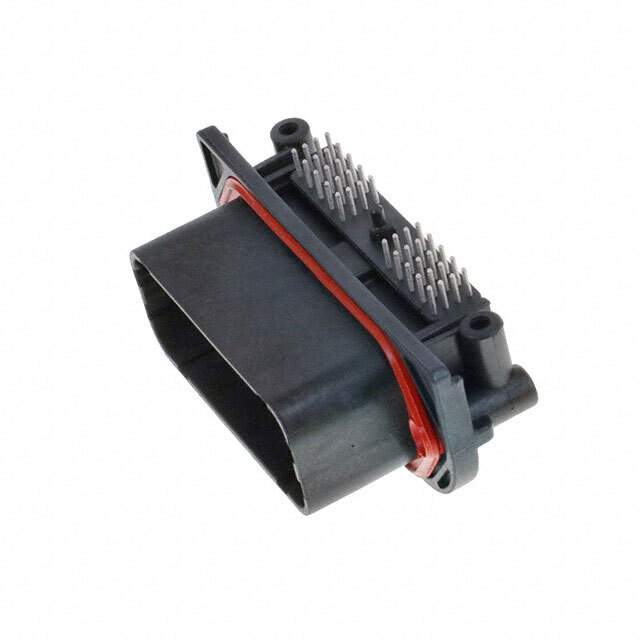

DRC23-40PA-N012

Name: DRC23-40PA-N012
Brand: TE Connectivity
SKU: 1342912
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DRC23-40PA-N012
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER BRD EDGE 40POS / Connector Header Board Edge, Through Hole, Right Angle 40 position
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity Deutsch Connectors
Series	DRC
Package	Tray
Connector Type	Receptacle
Contact Type	Male Pin
Number of Positions	40
Number of Rows	4
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Board Edge, Through Hole, Right Angle
Termination	Solder
Fastening Type	Threaded
Contact Length - Post	0.125" (3.18mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Insulation Material	Polyamide (PA) , Nylon, Glass Filled
Features	Board Guide, Flange
Insulation Color	Black
Base Product Number	DRC23
Standard Package	48
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1342912-DRC23-40PA-N012
Ultra Librarian 3D Model	Ultra Librarian DRC23-40PA-N012 CAD Model

Description

The TE Connectivity Deutsch Connectors DRC23 is a 40 position male pin header connector that belongs to the DRC series.

Feature: Board Guide, Flange
Connector Type: Receptacle
Insulation Color: Black
Shrouding: Shrouded-4 Wall
Pitch - Mating: -
Contact Finish-Mating: Gold
Contact Finish-Post: Tin
Maximum Voltage: 80V
Current Transfer Ratio: 100% @ 5mA
Temperature Range: -55°C ~ 110°C
ECCN: EAR99
