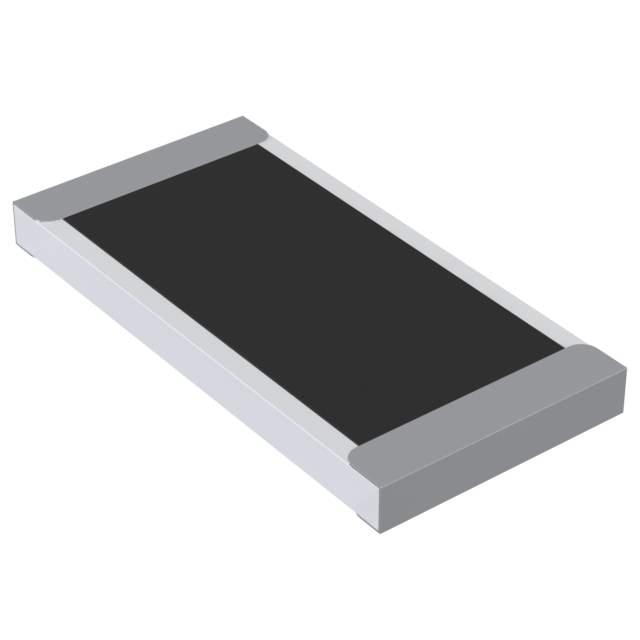

CRGP2512F22K Real Image
Same model may have multiple batches, images only for reference.

CRGP2512F22K

Part No CRGP2512F22K
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES 22K OHM 1% 2W 2512 / 22 kOhms ±1% 2W Chip Resistor 2512 (6432 Metric) Pulse Withstanding Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series CRGP
Package Tape & Reel
Resistance 22 kOhms
Tolerance ±1%
Power (Watts) 2W
Composition Thick Film
Features Pulse Withstanding
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Size / Dimension 0.250" L x 0.126" W (6.35mm x 3.20mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Base Product Number CRGP2512
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1351733-CRGP2512F22K
Ultra Librarian 3D Model Ultra Librarian CRGP2512F22K CAD Model

Description

The CRGP series resistor is a high-quality component manufactured by TE Connectivity Passive Product.

  • Type: surface mount, thick film resistor
  • Resistance: 22 kOhms
  • Power Rating: 2W
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Design: pulse withstanding
  • Package Size: 2512 (6432 Metric)
  • Height: 0.026" (0.65mm)
  • Packaging: tape & reel
  • Standard Package: 4,000
  • Operating Temperature Range: -55°C to 155°C
